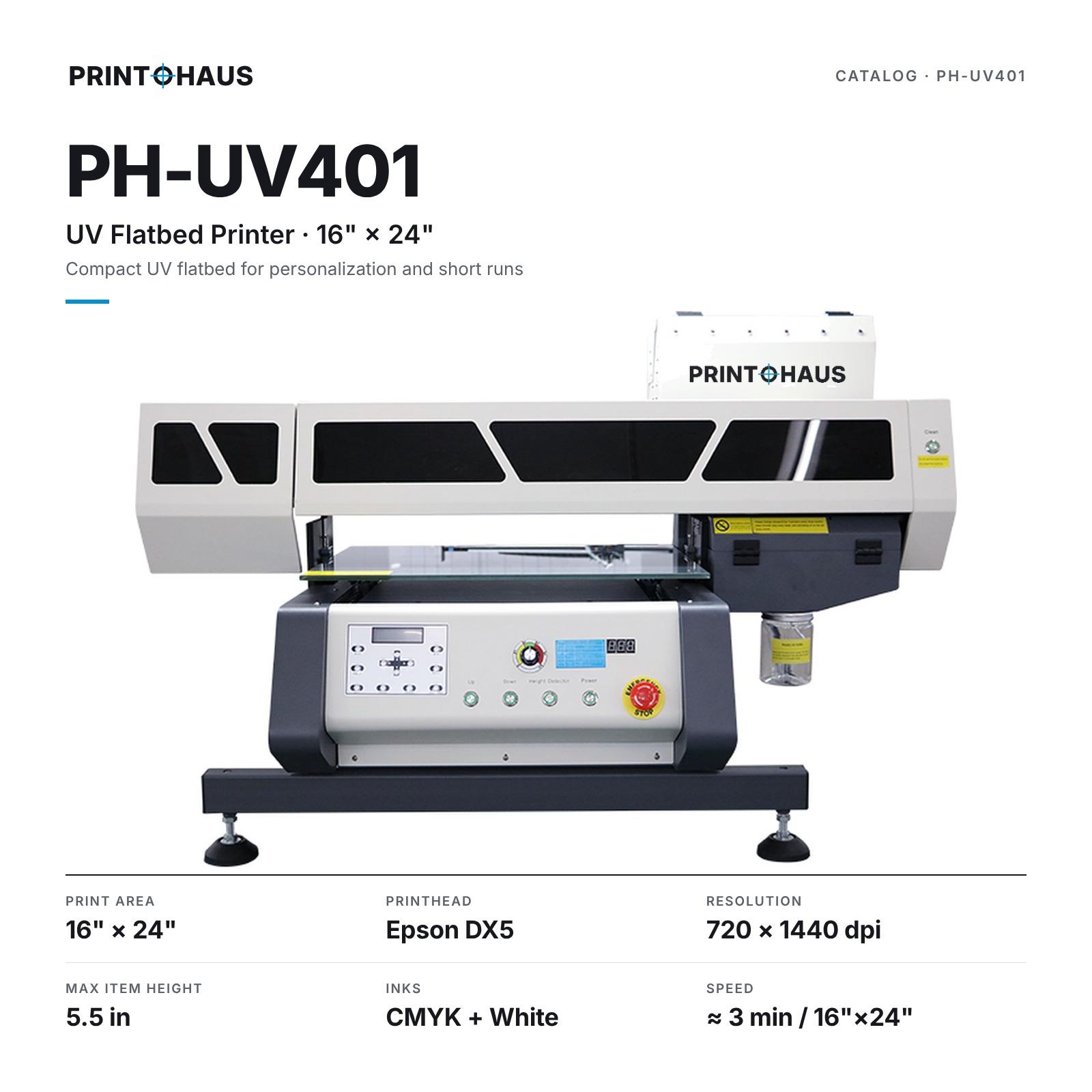

Specification
- Print area
- 16 × 24 in (40 × 60 cm)
- Printhead
- 1 × Epson DX5
- Max item height
- 5.5 in (140 mm)
- Ink
- CMYK + White (varnish optional)
- Print speed
- about 3 min for a full 16 × 24 in bed at 720 × 720 dpi
- Resolution
- up to 720 × 1440 dpi
- Nozzles
- 1,440 (180 × 8)
- Curing
- LED UV
- Ink system
- built-in CISS, 1,000 ml bottles, white ink stirring
- Height adjustment
- automatic, sensor-based
- Bed load
- up to 55 lb (25 kg)
- Software
- SAi PhotoPrint DX, Windows 7/8/10, USB 3.0
- Power
- 110V / 220V, 380 W
- Operating temperature
- 68–82 °F (20–28 °C)
- Dimensions
- 51.2 × 31.5 × 19.7 in (130 × 80 × 50 cm)
- Weight
- 257 lb net, 448 lb crated
- Shipping crate
- 57.5 × 40.6 × 37.2 in
- Warranty
- 12 months machine
A UV flatbed prints straight onto the object: lay a phone case, a sign blank or a tile on the bed and the printer puts down white, colour and optional varnish, curing each pass with LED light so it is dry the moment it comes off. The 16 × 24 in bed and 5.5 in clearance suit personalisation shops and short runs, and the Epson DX5 head is known for fine detail.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Phone cases, tumblers, mugs and bottles
- Acrylic, wood and metal signs, awards and plaques
- Glass, ceramic tiles, leather and promotional items
Configuration
Also considered
UV Flatbed Printer, 24 × 35 in
- 24 × 35 in (60 × 90 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
UV Flatbed Printer, 24 × 35 in, i3200
- 24 × 35 in (60 × 90 cm)
- 1 × Epson i3200-U1 HD
- 5.5 in (140 mm) glass bed, 4.3 in (110 mm) vacuum bed
UV Flatbed Printer, 24 × 35 in, 2 × i3200
- 24 × 35 in (60 × 90 cm)
- 2 × Epson i3200-U1
- 5.5 in (140 mm) glass bed, 4.3 in (110 mm) vacuum bed
Deciding between two?PH-UV401 vs PH-UV601PH-UV401 vs PH-UV611PH-UV401 vs PH-UV612
PH-UV401 — what buyers ask
- How much does a uv flatbed printer cost?
- The PH-UV401 is $9,490 delivered in the US. That is the final price: delivery, import duty and online setup are included, and there is nothing to pay on arrival. Outside the US we quote delivery before you order.
- Can it print on mugs and bottles?
- Flat items go straight on the bed. Round items such as mugs and bottles need a rotary attachment; ask us about one when you order.
- Does it print on T-shirts?
- No. UV ink is for hard surfaces. For garments, a DTF printer is the right machine.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-UV401?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
