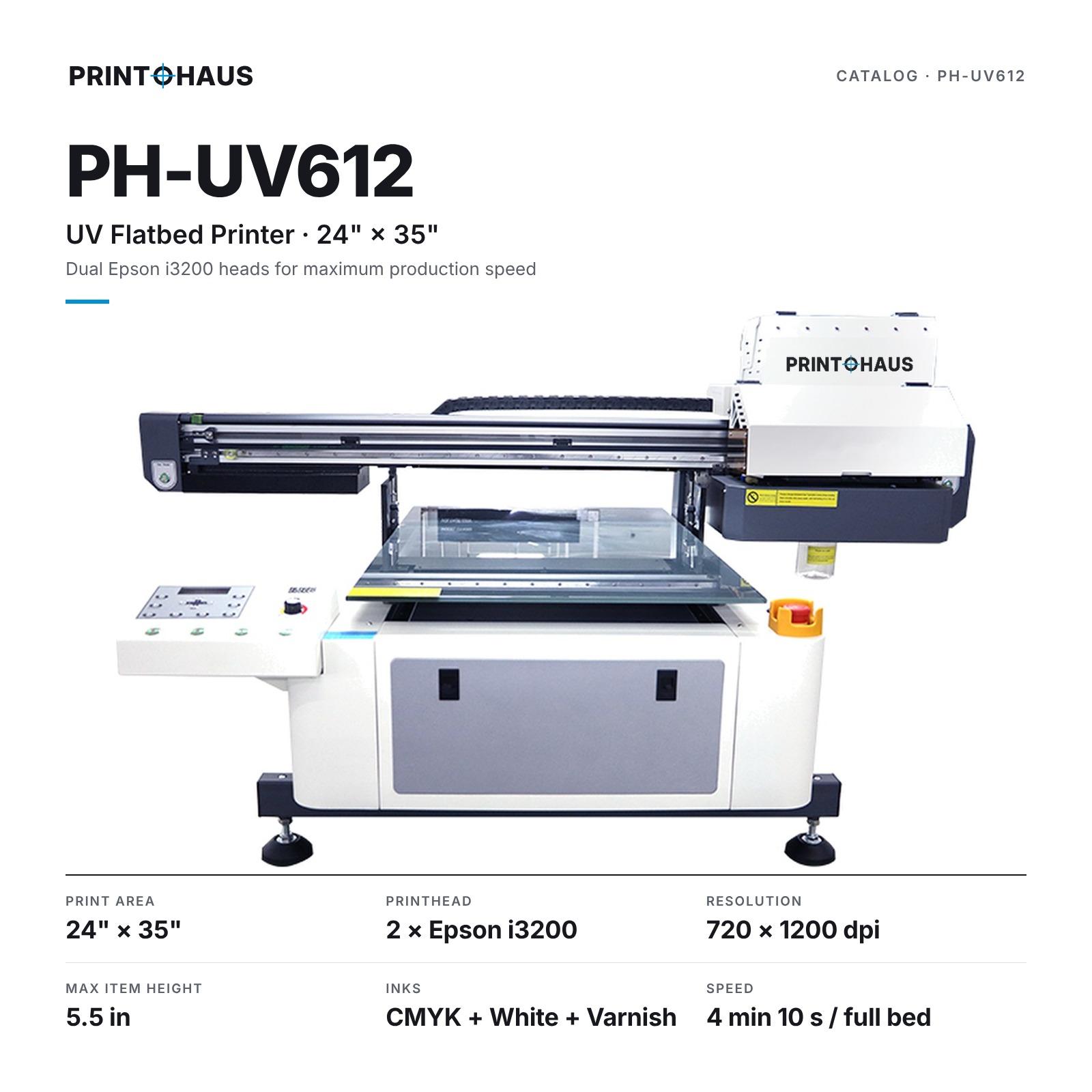

Specification
- Print area
- 24 × 35 in (60 × 90 cm)
- Printheads
- 2 × Epson i3200-U1
- Max item height
- 5.5 in (140 mm) glass bed, 4.3 in (110 mm) vacuum bed
- Ink
- CMYK + White + Varnish, CMYK + White, or 8-colour
- Print speed
- full bed in about 4 min 10 s (4-pass, bi-directional)
- Resolution
- up to 720 × 3600 dpi
- Nozzles
- 3,200 per head (400 × 8)
- Curing
- LED UV
- Ink system
- built-in CISS, 1,000 ml bottles, white ink stirring
- Height adjustment
- automatic, sensor-based
- Bed load
- up to 55 lb (25 kg)
- Ink mist extraction
- built in
- Software
- SAi PhotoPrint, Windows 7/8/10 64-bit, Ethernet
- Power
- 110V / 220V, 380 W
- Operating temperature
- 68–82 °F (20–28 °C)
- Dimensions
- 55.5 × 69.3 × 29.9 in (141 × 176 × 76 cm)
- Weight
- 381 lb net, 700 lb crated
- Shipping crate
- 76.8 × 63.0 × 36.8 in
- Warranty
- 12 months machine
A second Epson i3200 head gives colour and white or varnish their own head, so a full bed prints in about four minutes against six on the single-head PH-UV611. For shops that run the printer all day, the time saved on every bed is the reason to buy it.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Phone cases, tumblers, mugs and bottles
- Acrylic, wood and metal signs, awards and plaques
- Glass, ceramic tiles, leather and promotional items
Configuration
Also considered
UV Flatbed Printer, 24 × 35 in, i3200
- 24 × 35 in (60 × 90 cm)
- 1 × Epson i3200-U1 HD
- 5.5 in (140 mm) glass bed, 4.3 in (110 mm) vacuum bed
UV Flatbed Printer, 24 × 35 in
- 24 × 35 in (60 × 90 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
UV Flatbed Printer, 16 × 24 in
- 16 × 24 in (40 × 60 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
Deciding between two?PH-UV612 vs PH-UV611PH-UV612 vs PH-UV601PH-UV612 vs PH-UV401
PH-UV612 — what buyers ask
- How much does a dual head uv flatbed printer cost?
- The PH-UV612 is $15,490 delivered in the US. That is the final price: delivery, import duty and online setup are included, and there is nothing to pay on arrival. Outside the US we quote delivery before you order.
- Why two heads?
- One head prints colour while the other prints white or varnish, so a full bed takes about 4 minutes instead of 6.
- Does it print on T-shirts?
- No. UV ink is for hard surfaces. For garments, a DTF printer is the right machine.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-UV612?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
