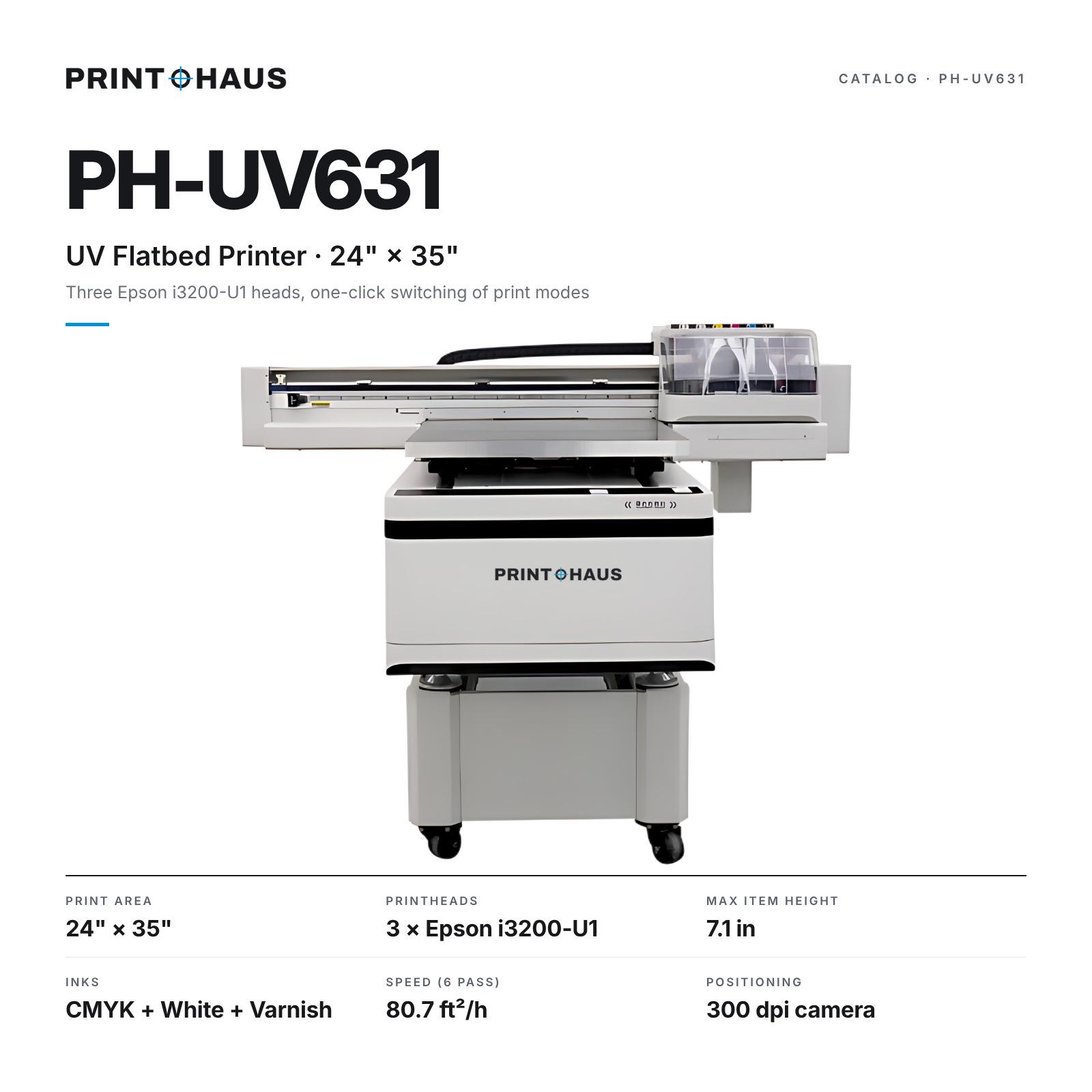

Specification
- Print area
- 23.6 × 35.4 in (600 × 900 mm)
- Printheads
- 3 × Epson i3200-U1
- Max item height
- 7.1 in (180 mm)
- Ink
- CMYK + White + Varnish, UV-curable
- Print speed
- 6 pass 80.7 ft²/h (7.5 m²/h) · 8 pass 53.8 ft²/h (5 m²/h)
- Resolution
- up to 720 × 1800 dpi
- Positioning
- visual positioning camera, 300 dpi
- Print bed
- vacuum suction platform
- UV curing
- air-cooled UV lamp, 13-step adjustable
- Printing modes
- one-click switching between print schemes
- RIP software
- Flexi, RIIN or Maintop
- Power
- 1,200 W
- Dimensions
- 67.3 × 64.6 × 31.9 in (171 × 164 × 81 cm)
- Shipping dimensions
- 70.5 × 68.9 × 40.6 in (179 × 175 × 103 cm)
- Weight
- 595 lb (270 kg)
- Warranty
- 12 months machine

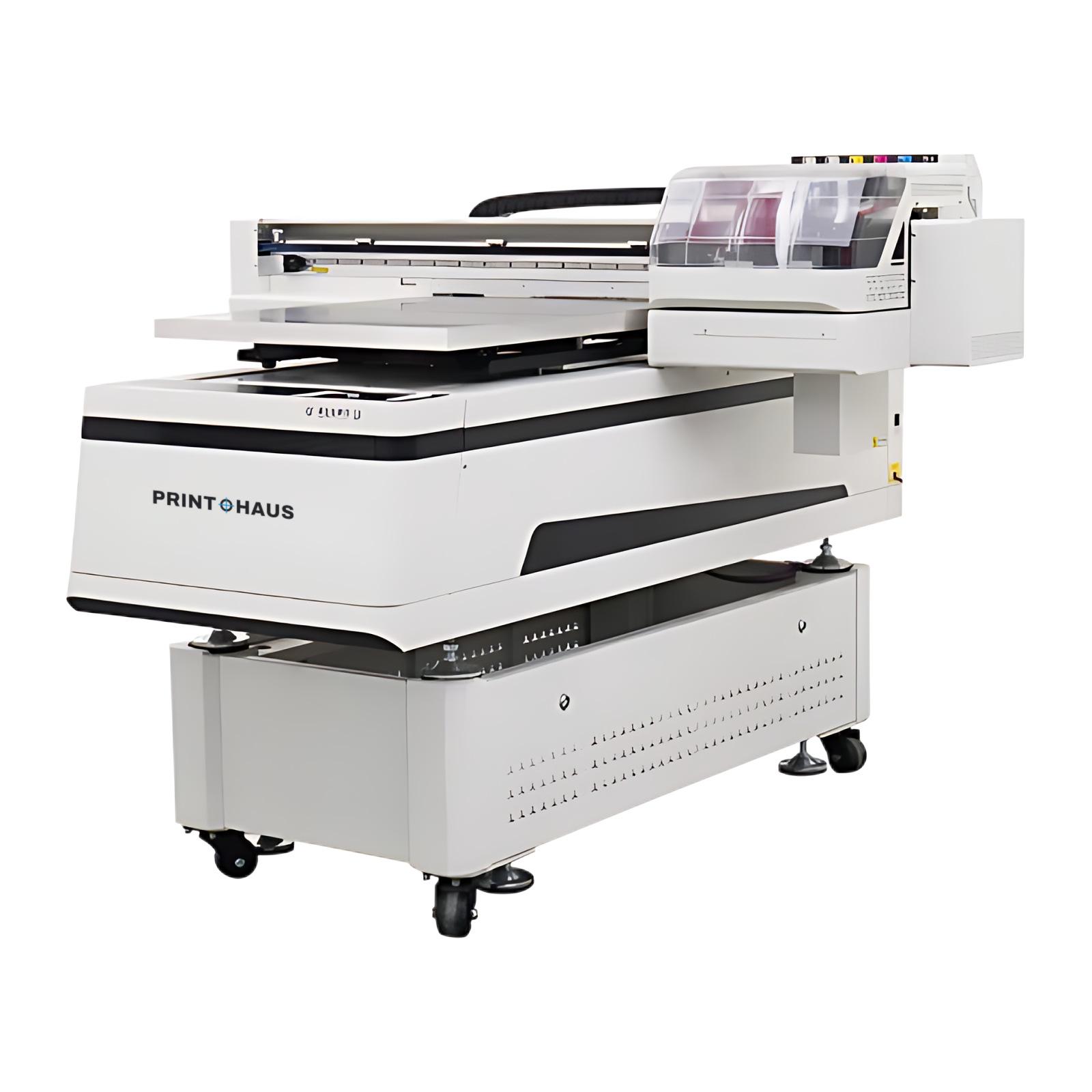

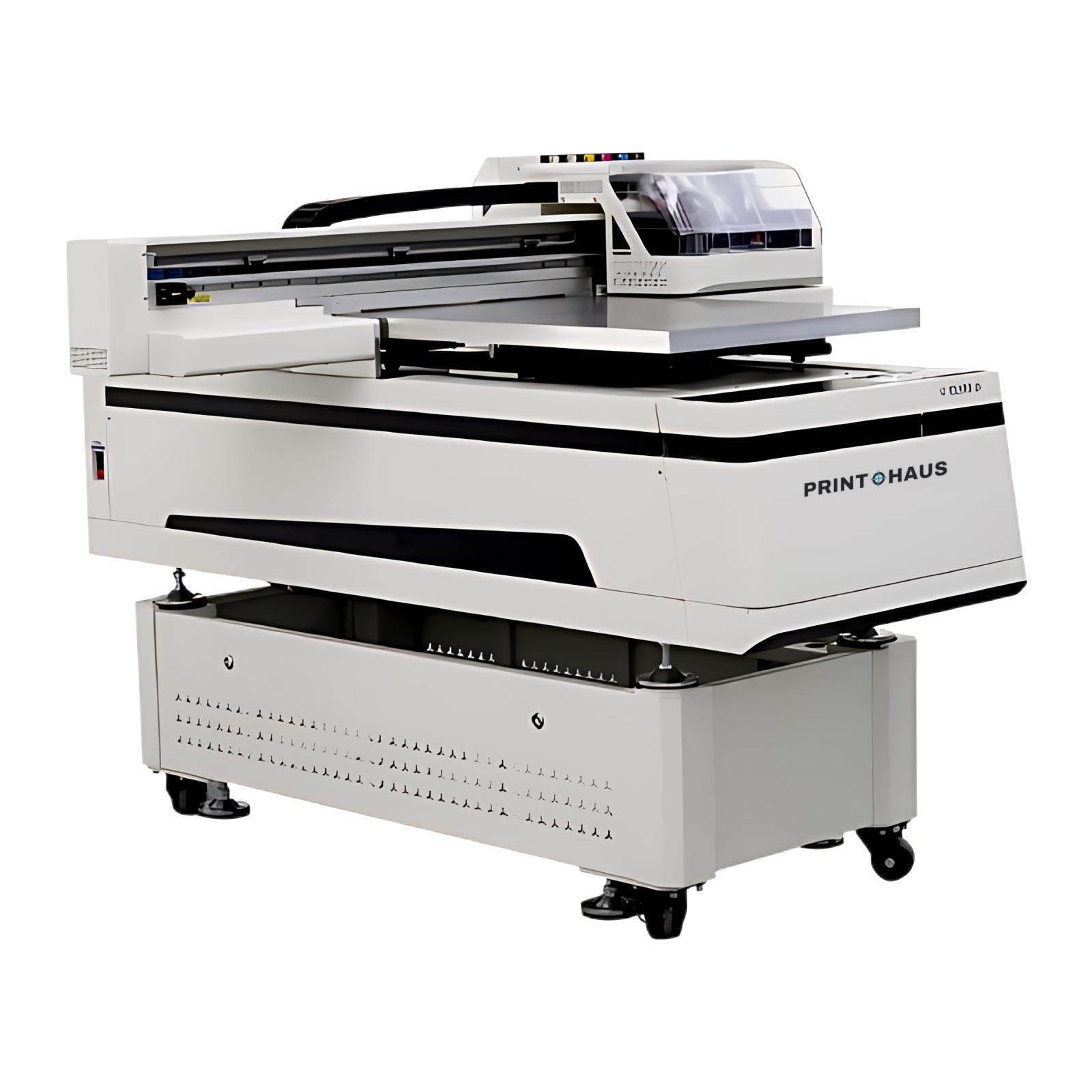

The PH-UV631 gives colour, white and varnish a head each, so raised and glossy effects print in one pass across a full 24 × 35 in bed. A 300 dpi camera finds each item on the bed and places the artwork on it, which is what makes a tray of mixed blanks, or a re-print on a part-finished piece, quick to set up. The 7.1 in clearance takes boxes, thick signs and tall gifts that lower-clearance machines cannot.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Acrylic signs, awards and wall plaques
- Coasters, ceramic tiles and printed art panels
- Phone cases, mugs, bottles and promotional items
- Metal, leather, wood, plastic and glass
Also considered
UV Flatbed Printer, 16 × 24 in
- 16 × 24 in (40 × 60 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
UV Flatbed Printer, 24 × 35 in
- 24 × 35 in (60 × 90 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
UV Flatbed Printer, 24 × 35 in, i3200
- 24 × 35 in (60 × 90 cm)
- 1 × Epson i3200-U1 HD
- 5.5 in (140 mm) glass bed, 4.3 in (110 mm) vacuum bed
Deciding between two?PH-UV631 vs PH-UV401PH-UV631 vs PH-UV601PH-UV631 vs PH-UV611
PH-UV631 — what buyers ask
- How much does the PH-UV631 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- What does the camera do?
- It photographs the bed and shows where each item lies, so the artwork lands on the item without measuring or a jig.
- Can it print on bottles?
- Yes, with the optional bottle printing attachment. A roll-to-roll attachment is also available. Ask us when you order.
- Does it print on T-shirts?
- No. UV ink is for hard surfaces. For garments, a DTF printer is the right machine.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-UV631?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
