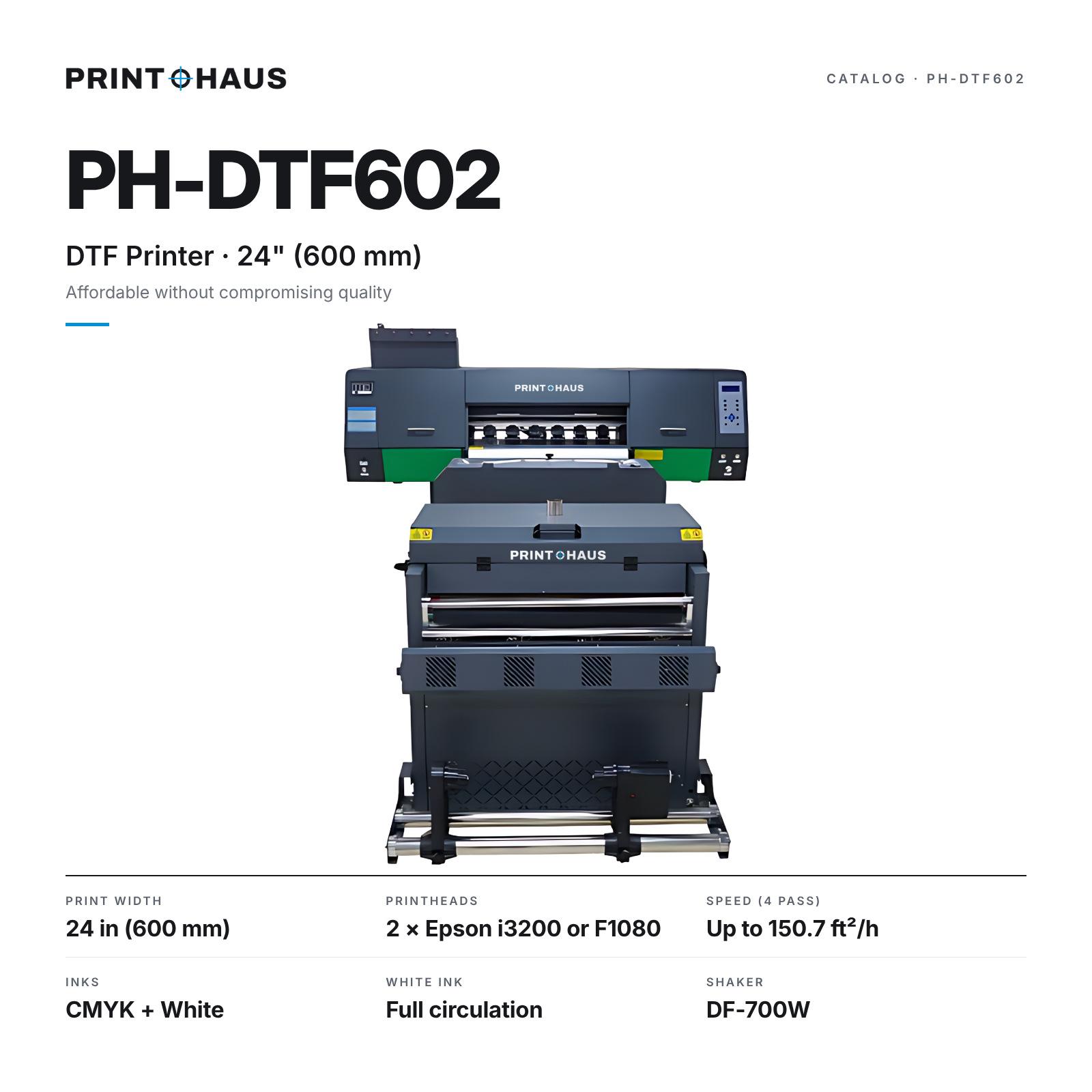

Specification
- Print width
- 23.6 in (600 mm)
- Printheads
- 2 × Epson i3200-A1
- Ink
- CMYK + White, pigment
- Production speed
- up to 14 m²/h, 150 ft²/h (4-pass)
- Print speed
- 4 pass 150.7 ft²/h (14 m²/h) · 6 pass 86.1 ft²/h (8 m²/h)
- White ink
- full circulation system, low-ink alarm
- RIP software
- RIIN (Flexi optional)
- Motion
- servo motors, Leadshine motor bearing structure, all-aluminium body
- Film feed
- tension dancer roller for flatter feeding

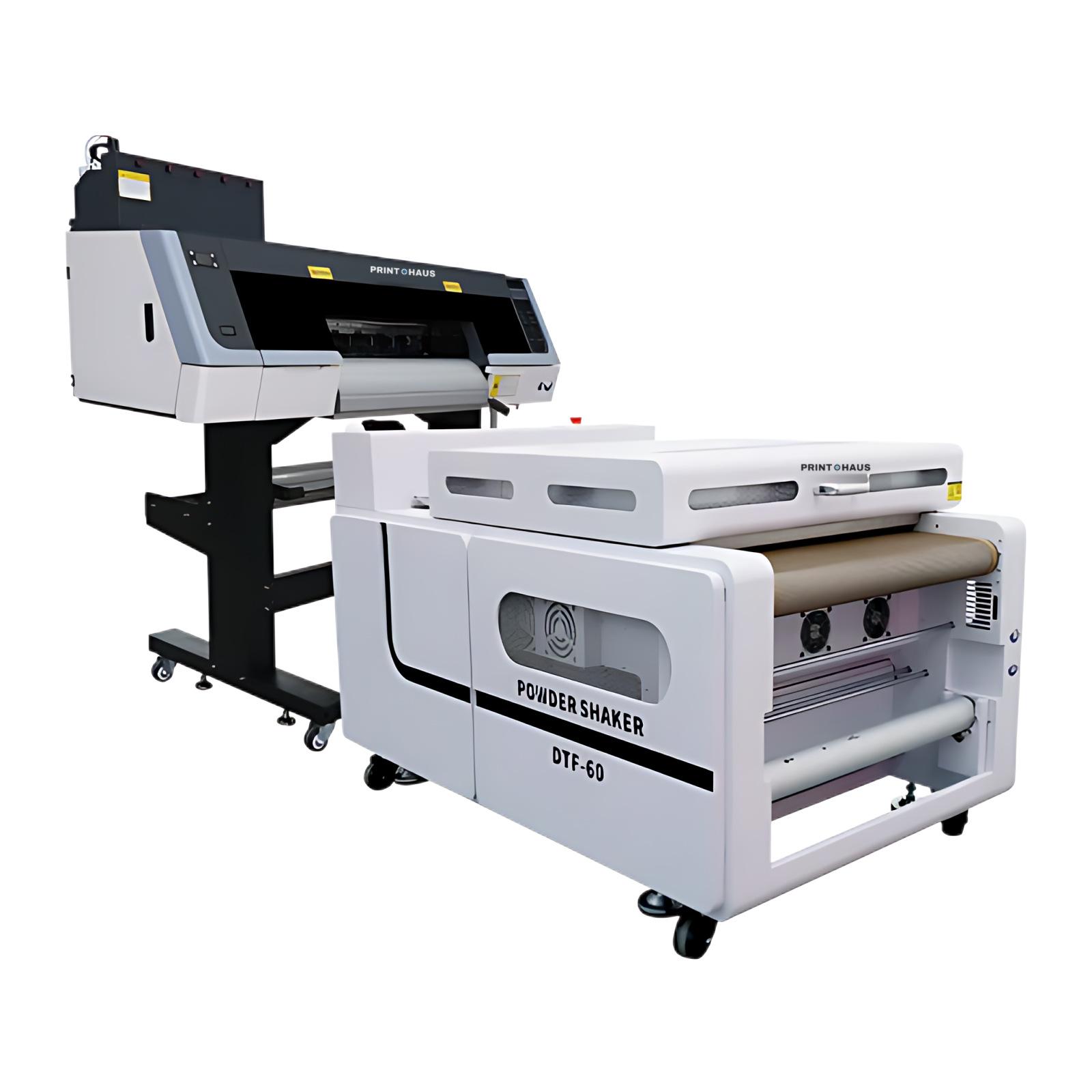

- Powder shaker
- DF-700W
- Air filter
- included, for powder-curing fumes
- Power
- printer 1,400 W · shaker 4,300 W · 220 V 50/60 Hz
- Printer shipping size
- 78.0 × 29.9 × 28.0 in (198 × 76 × 71 cm)
- Shaker shipping size
- 49.6 × 45.3 × 50.4 in (126 × 115 × 128 cm)
- Weight
- printer 434 lb (197 kg) · shaker 527 lb (239 kg)
- Warranty
- 12 months machine
The PH-DTF602 is where most shops start printing gang sheets for themselves: 24-inch film, two Epson i3200 heads printing colour and white together, and an inline DF-700W shaker that powders and cures at the printer's speed. At up to 150 ft² an hour in 4 pass it keeps more than one heat press busy, and the full white-ink circulation and tension dancer roller are what let it run long days without banding or skewed film.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- T-shirts, hoodies, sweatshirts and kidswear, light or dark
- Caps, tote bags and workwear
- Gang sheets sold by the foot to other shops
- Cotton, polyester, nylon and blends, with no pretreatment
Also considered
12-inch DTF Printer with Powder Shaker, 2 × i3200
- 11.8 in (300 mm)
- 2 × Epson i3200-A1
- CMYK + White, pigment
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
UV Flatbed Printer, 24 × 35 in
- 24 × 35 in (60 × 90 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
Deciding between two?PH-DTF602 vs PH-DTF302
PH-DTF602 — what buyers ask
- How much does a 24 inch dtf printer with shaker cost?
- The PH-DTF602 is $11,490 delivered in the US. That is the final price: delivery, import duty and online setup are included, and there is nothing to pay on arrival. Outside the US we quote delivery before you order.
- Is the powder shaker included?
- Yes. The price covers the printer, the DF-700W powder shaker and dryer, and an air filter, delivered to your door.
- Does it run on a US 110V outlet?
- No. It runs on 220V. The shaker draws 4,300 W, so it needs its own 220V circuit, the kind a clothes dryer uses. An electrician can add one before the machine arrives.
- Is there a cheaper version?

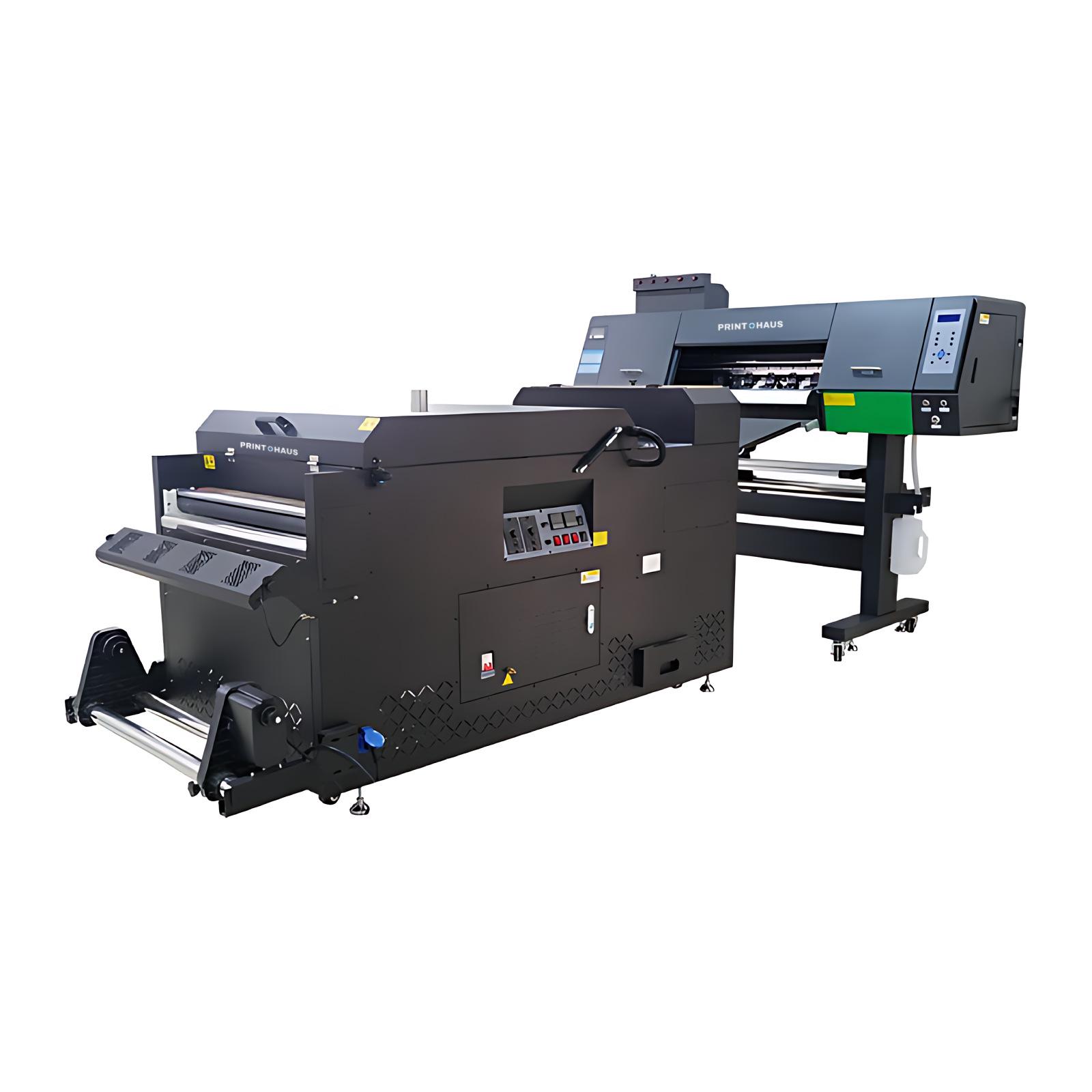

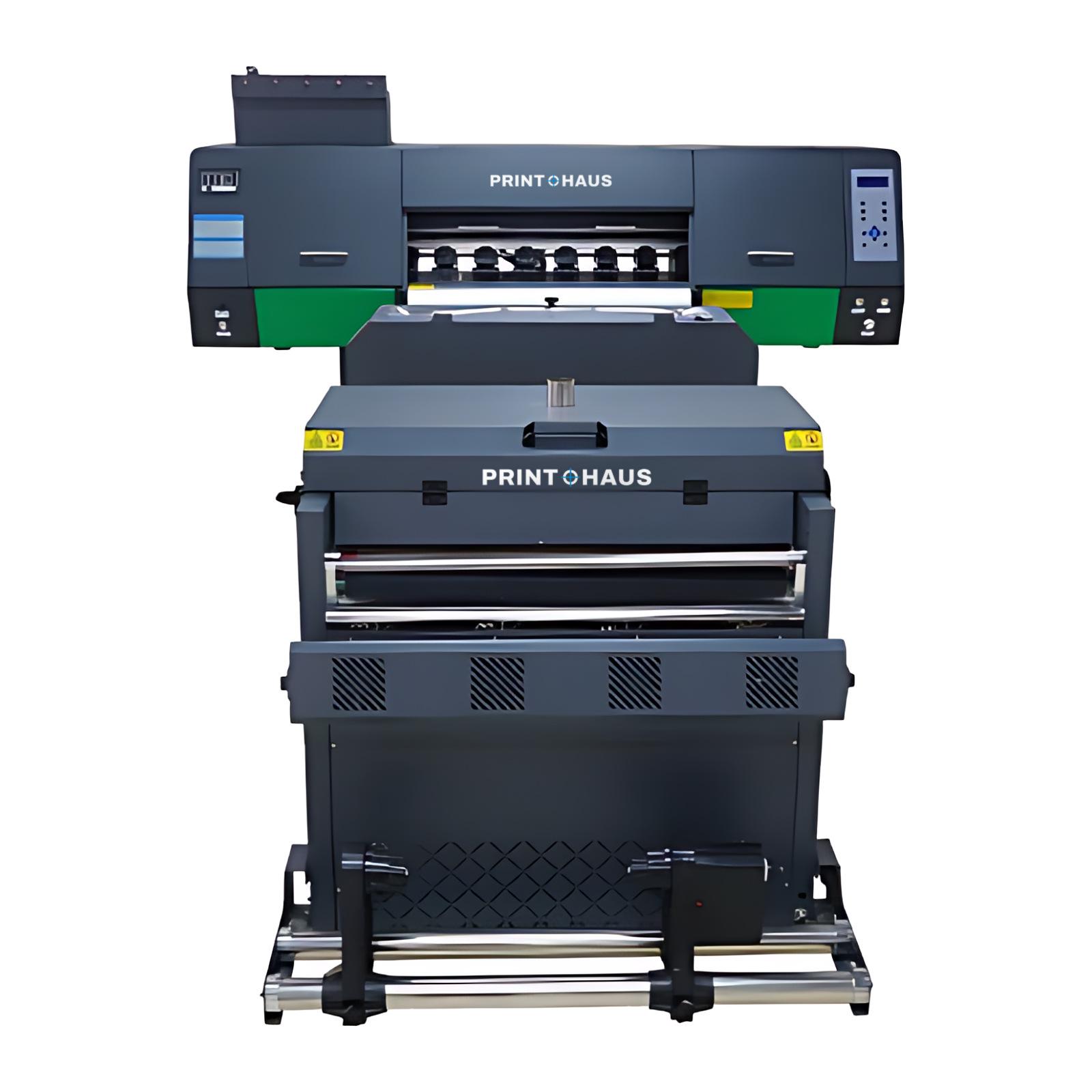

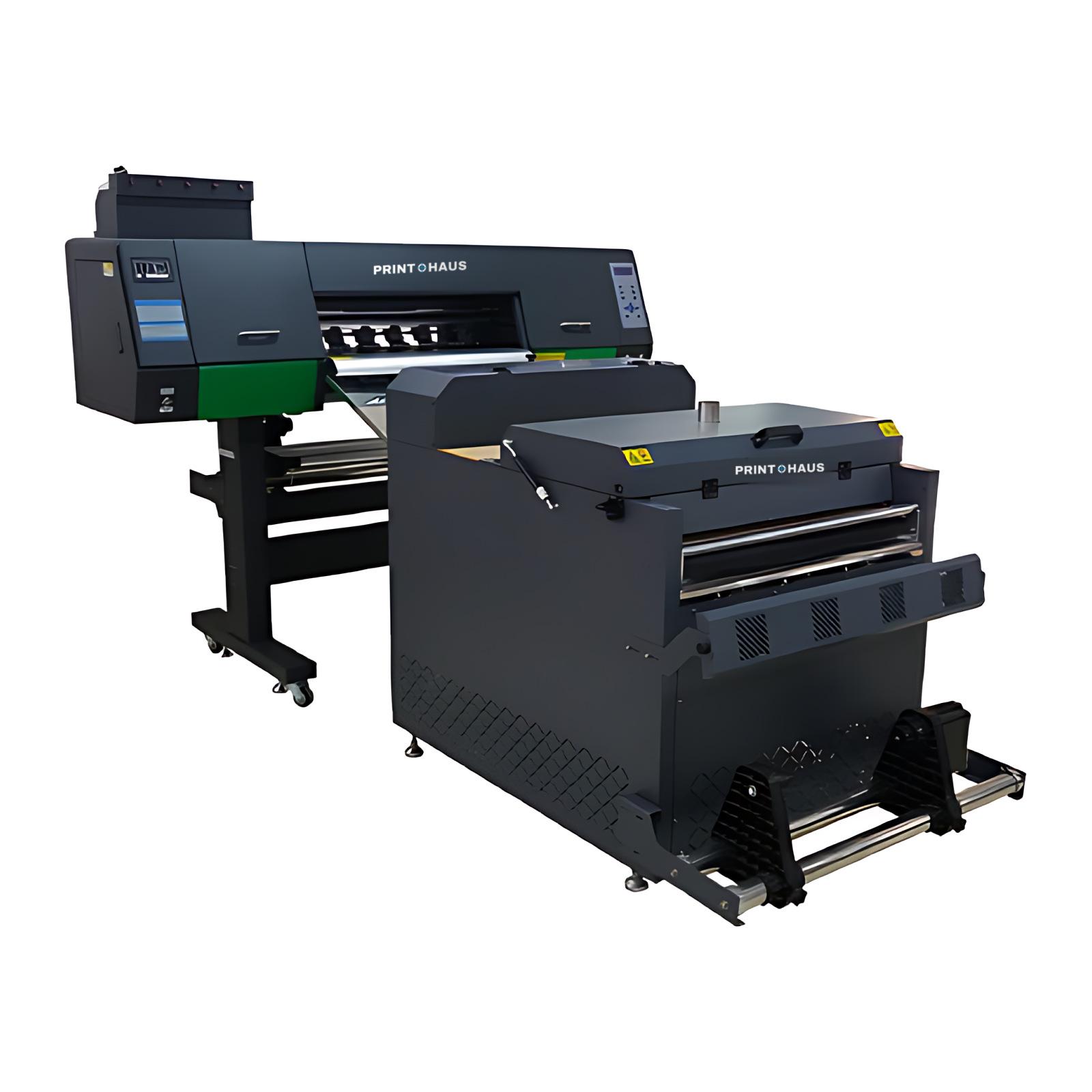

- Yes, the PH-DTF602F uses two Epson F1080 heads and prints up to 54 ft²/h at 4 pass. It suits lower volumes. Ask us for its price.
- Do I need Flexi?
- No. RIIN is included and does the colour and white channels. Flexi is an option for shops that already run it.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-DTF602?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
