Specification
- Print width
- 23.6 in (600 mm)
- Printheads
- 6 × Epson i3200-A1
- Ink
- 9 colours, CMYK + orange, red, green, blue + White, pigment
- Production speed
- up to 18 m²/h, 194 ft²/h (6-pass)
- RIP software
- RIIN
- Status light
- tri-colour alarm light
- Film
- splicing system, no repositioning after reloading film
- Controls
- touch screen, high-capacity powder tank
- Powder shaker
- DF-900L(A), up to 23.6 in (600 mm), with film bonding device
- Shaker heating
- 13 tubes × 23.6 in (600 mm), 300 W each, variable-frequency drive
- Power
- printer 2,200 W · shaker 4,000 W · 220 V 50/60 Hz
- Operating temperature
- 59–86 °F (15–30 °C)
- Printer shipping size
- 89.0 × 37.8 × 34.6 in (226 × 96 × 88 cm)
- Shaker shipping size
- 90.9 × 42.5 × 44.5 in (231 × 108 × 113 cm)
- Weight
- printer 728 lb (330 kg) · shaker 827 lb (375 kg)
- Warranty
- 12 months machine

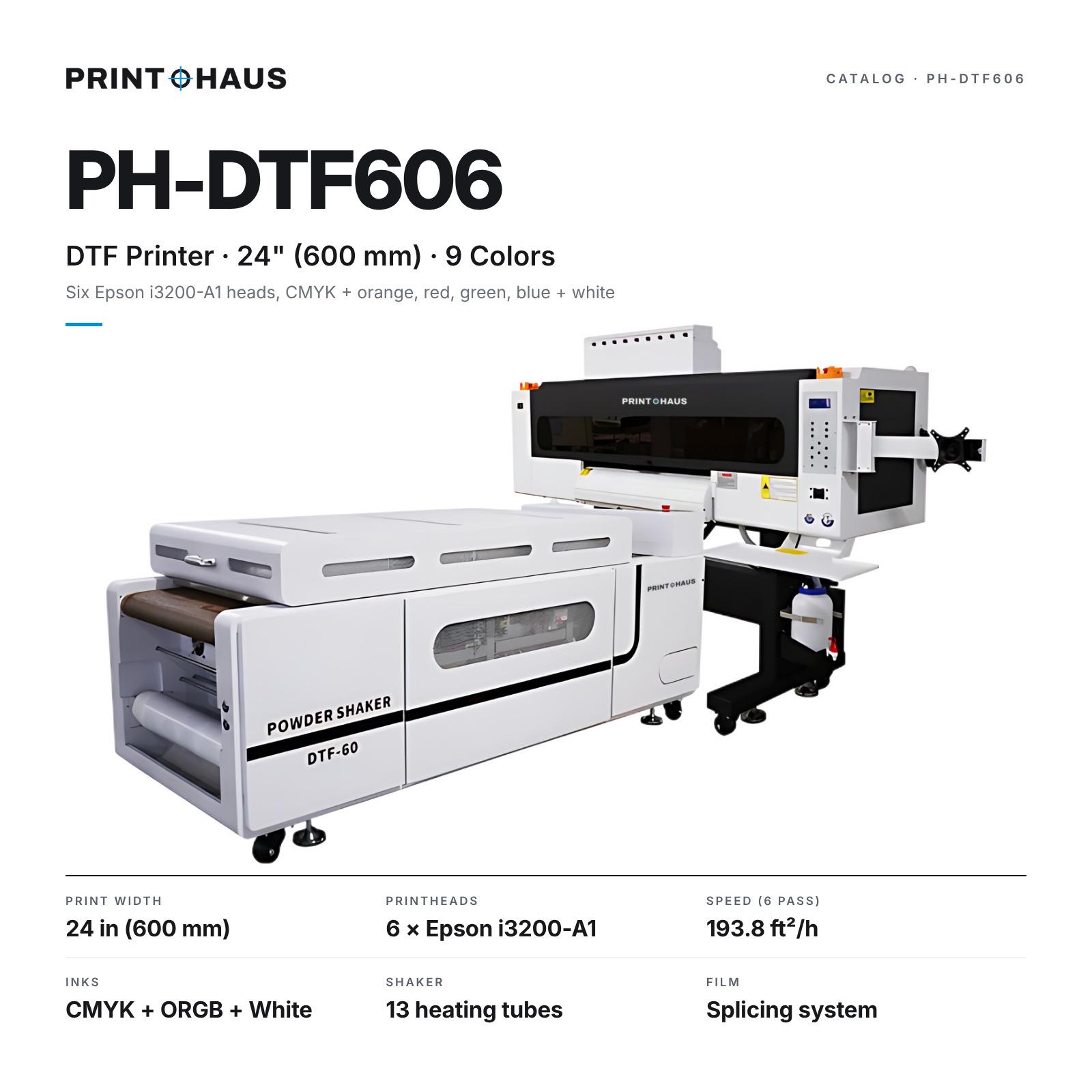

The PH-DTF606 is a production DTF line for shops that sell transfers by the foot. Six Epson i3200 heads run nine colours: orange, red, green and blue on top of CMYK reach the saturated brand colours and neons that four-colour DTF can only approximate. It prints up to 194 ft² an hour at 6 pass, and the 13-tube shaker cures at that speed. Film splicing means a new roll joins the old one without re-threading.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Full-colour gang sheets sold to other shops
- T-shirts, hoodies and sweatshirts, light or dark
- Caps, tote bags, oversized and streetwear prints
- Brand colours and bright tones four-colour DTF cannot reach
Also considered
12-inch DTF Printer with Powder Shaker, 2 × i3200
- 11.8 in (300 mm)
- 2 × Epson i3200-A1
- CMYK + White, pigment
24-inch DTF Printer with Powder Shaker, 2 × i3200
- 23.6 in (600 mm)
- 2 × Epson i3200-A1
- CMYK + White, pigment
24-inch UV DTF Printer with Laminator, 3 × i3200
- 23.6 in (600 mm)
- 3 × Epson i3200-U1
- CMYK + White + Varnish, UV
Deciding between two?PH-DTF606 vs PH-DTF302PH-DTF606 vs PH-DTF602
PH-DTF606 — what buyers ask
- How much does the PH-DTF606 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- Why nine colours?
- Orange, red, green and blue widen the gamut. Bright brand colours and neon-like tones print closer to the artwork than they can with CMYK alone.
- Does it run on a US 110V outlet?
- No. It needs 220V circuits for the printer and the shaker. An electrician can add them before the machine arrives.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-DTF606?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
