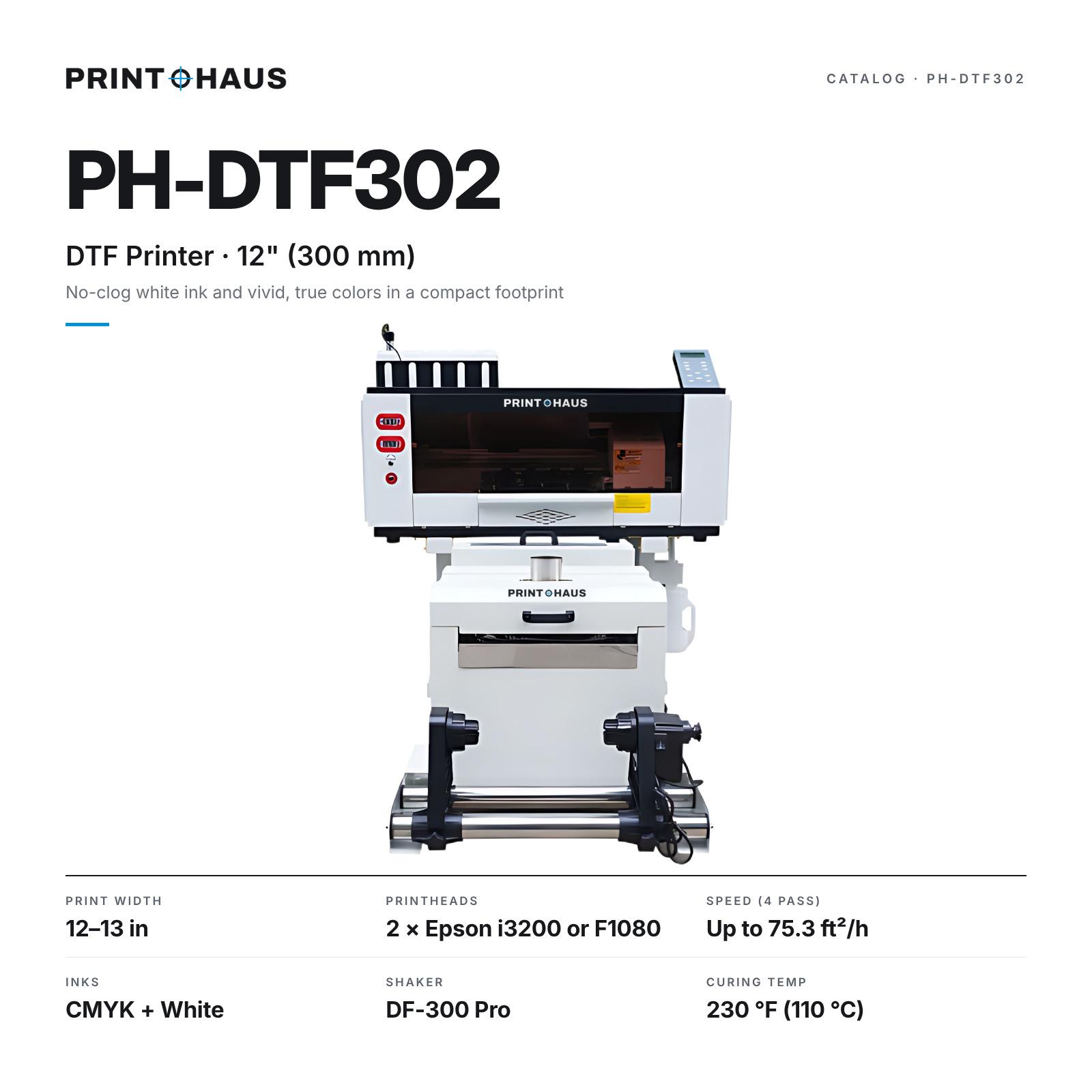

Specification
- Print width
- 11.8 in (300 mm)
- Printheads
- 2 × Epson i3200-A1
- Ink
- CMYK + White, pigment
- Production speed
- up to 7 m²/h, 75 ft²/h (4-pass)
- Print speed
- 4 pass 75.3 ft²/h (7 m²/h) · 6 pass 50.6 ft²/h (4.7 m²/h) · 8 pass 38.8 ft²/h (3.6 m²/h)
- White ink
- automatic circulation, stirring and filtering
- Colour
- 4-colour ICC-controlled printing
- Powder shaker
- 3 heating tubes × 15.7 in (400 mm), 400 W each, curing at 230 °F (110 °C)
- Air filter
- included, for powder-curing fumes
- RIP software
- RIIN
- Motion
- servo-driven, multi-pass modes
- Printhead protection
- anti-collision device
- Power
- printer 1,000 W · shaker 1,250 W · 220 V 50/60 Hz
- Operating environment
- 64–86 °F (18–30 °C), 40–60% RH
- Printer shipping size
- 57.5 × 25.6 × 24.4 in (146 × 65 × 62 cm)
- Shaker shipping size
- 31.9 × 25.2 × 31.1 in (81 × 64 × 79 cm)
- Weight
- printer 258 lb (117 kg) · shaker 262 lb (119 kg)
- Warranty
- 12 months machine

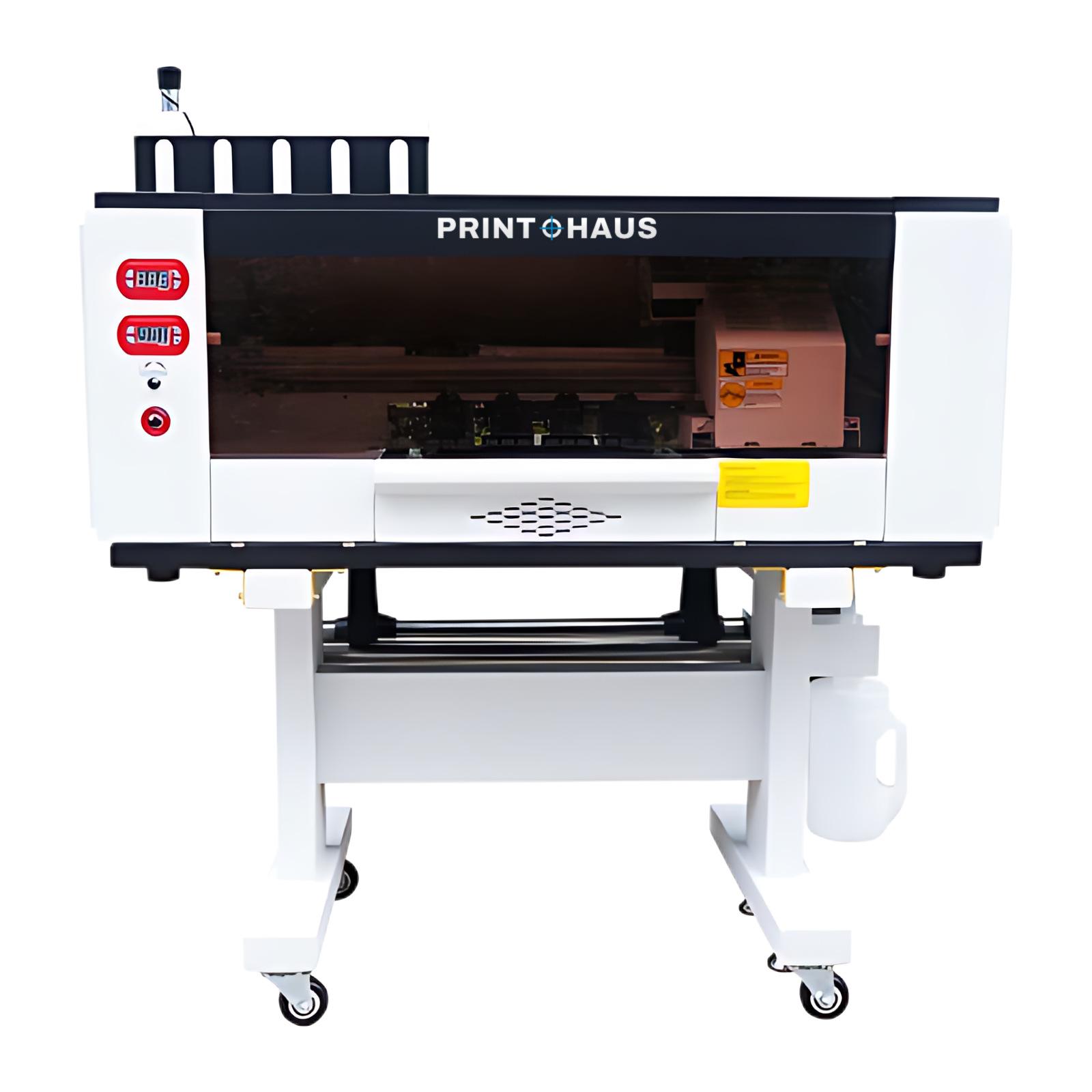

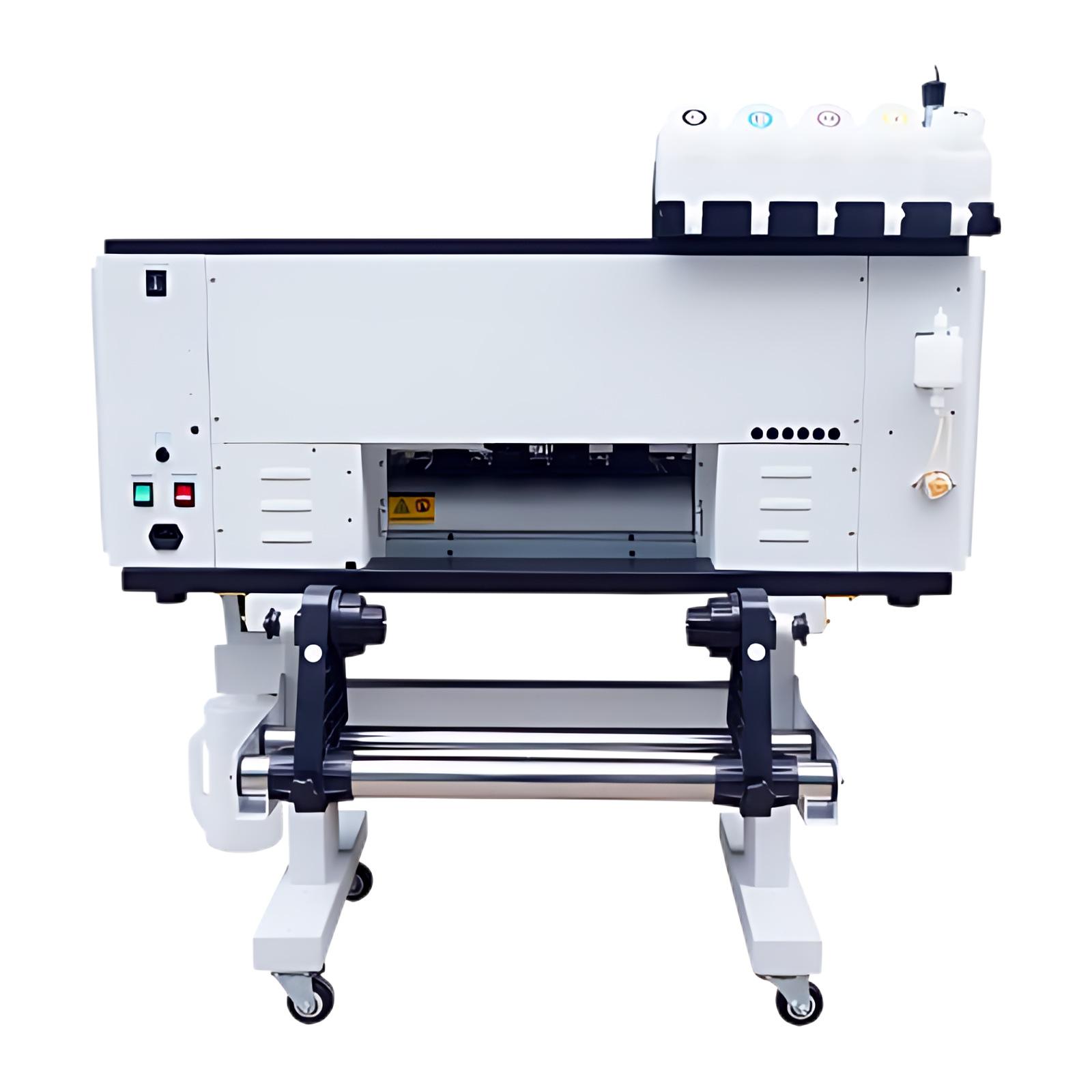

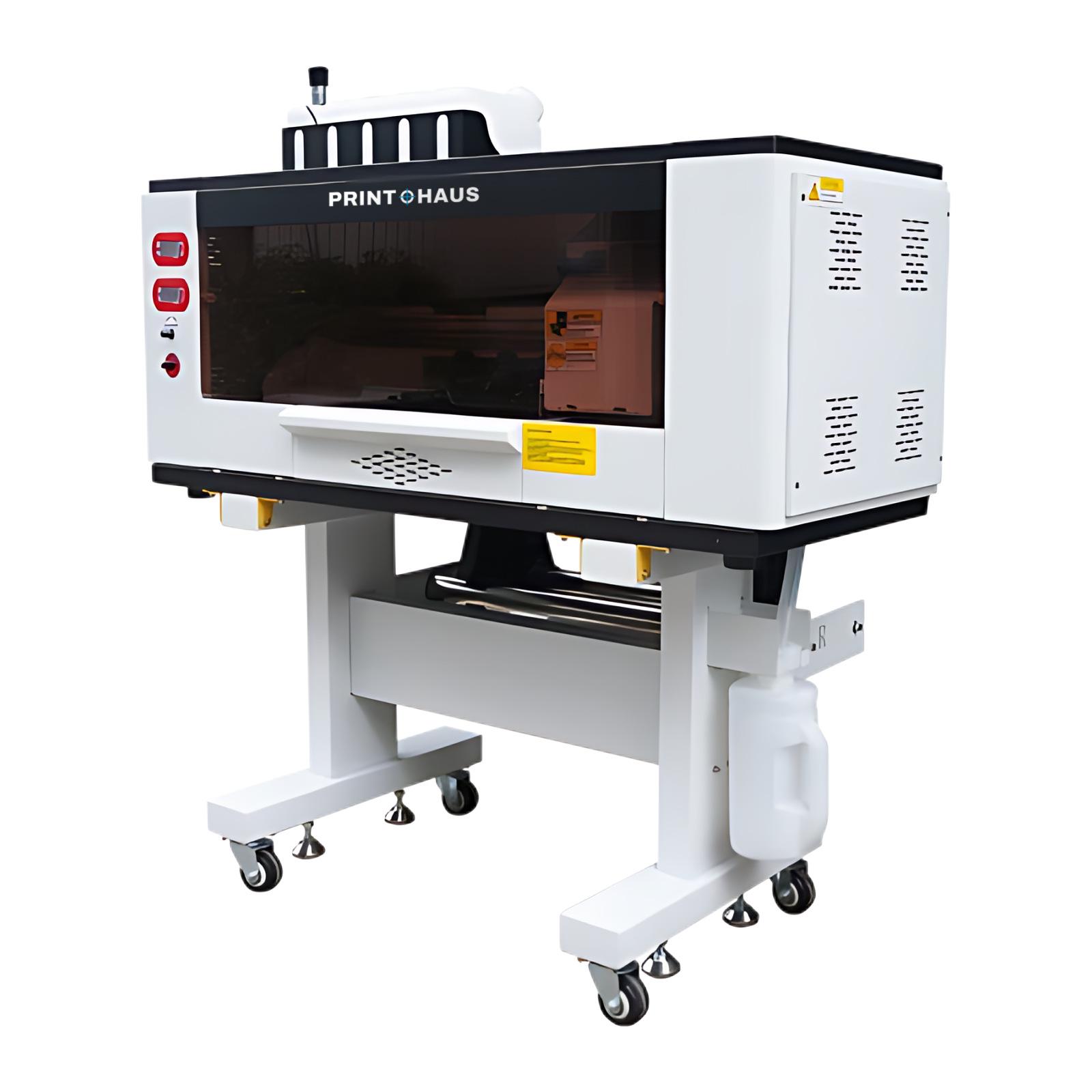

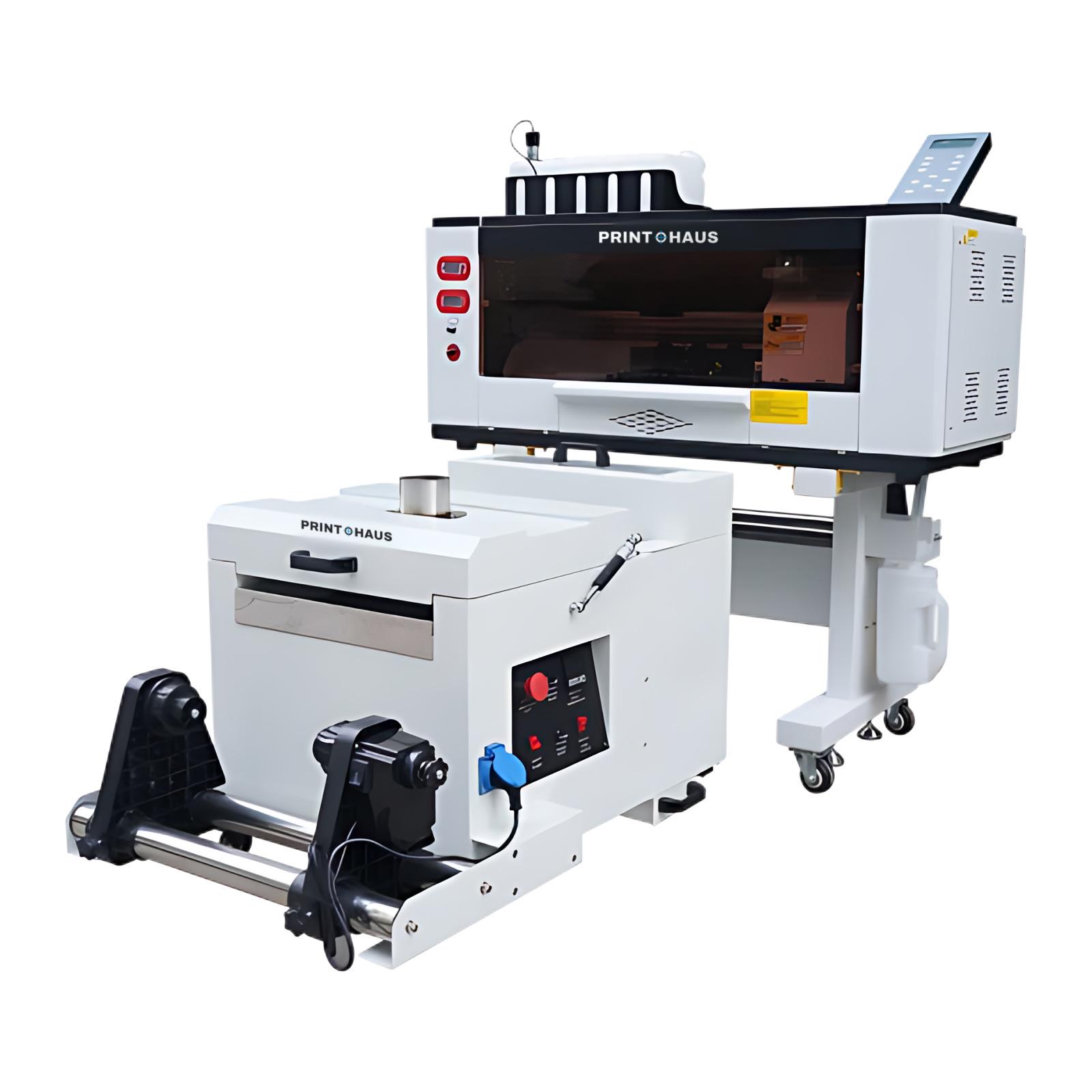

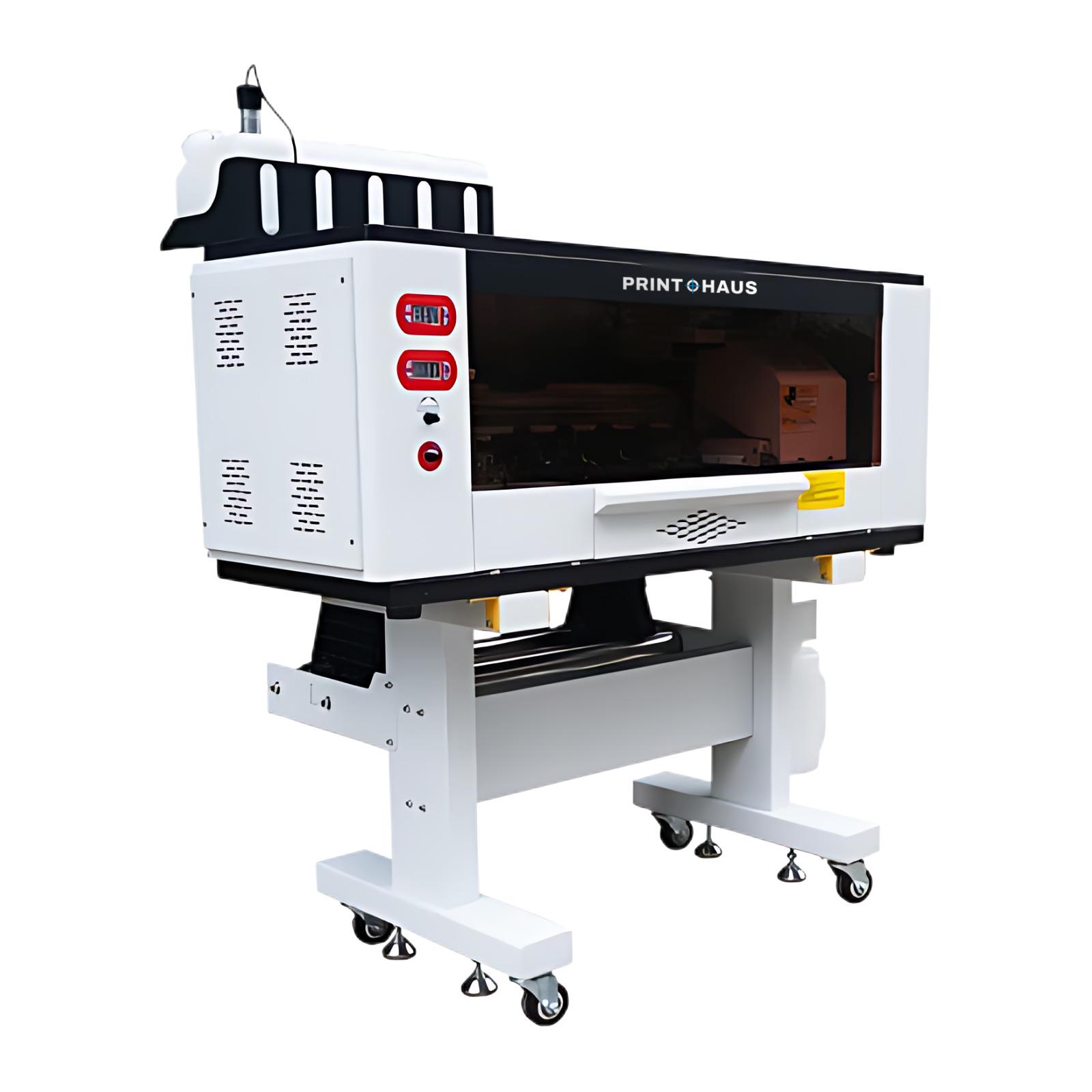

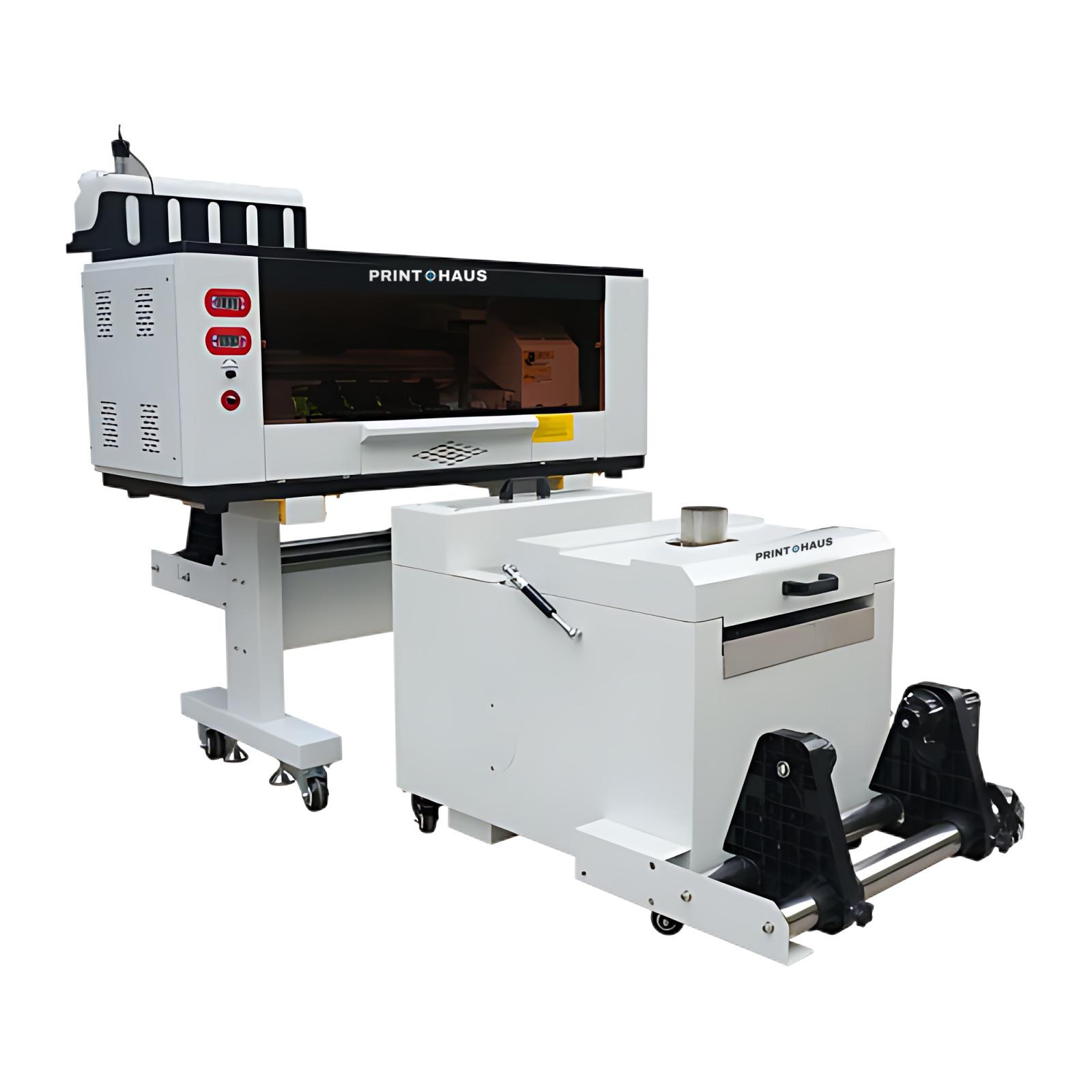

The PH-DTF302 is the smallest complete DTF line we sell: a 12-inch printer with two Epson i3200 heads, an inline powder shaker and an air filter, so film goes in blank and comes out powdered and cured, ready for the heat press. Two industrial heads at this width mean colour and white print together at up to 75 ft² an hour, enough for a brand or a small shop that is tired of waiting on outsourced transfers. White ink circulates, stirs and filters on its own, which is what keeps a small machine printing clean after a weekend off.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- T-shirts, hoodies and sweatshirts, light or dark
- Polo shirts and workwear with left-chest logos
- Tote bags, caps and accessories
- Cotton, polyester and blends, with no pretreatment
Also considered
24-inch DTF Printer with Powder Shaker, 2 × i3200
- 23.6 in (600 mm)
- 2 × Epson i3200-A1
- CMYK + White, pigment
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
UV Flatbed Printer, 16 × 24 in
- 16 × 24 in (40 × 60 cm)
- 1 × Epson DX5
- 5.5 in (140 mm)
Deciding between two?PH-DTF302 vs PH-DTF602
PH-DTF302 — what buyers ask
- How much does a a3 dtf printer with shaker cost?
- The PH-DTF302 is $8,490 delivered in the US. That is the final price: delivery, import duty and online setup are included, and there is nothing to pay on arrival. Outside the US we quote delivery before you order.
- Is the powder shaker included?

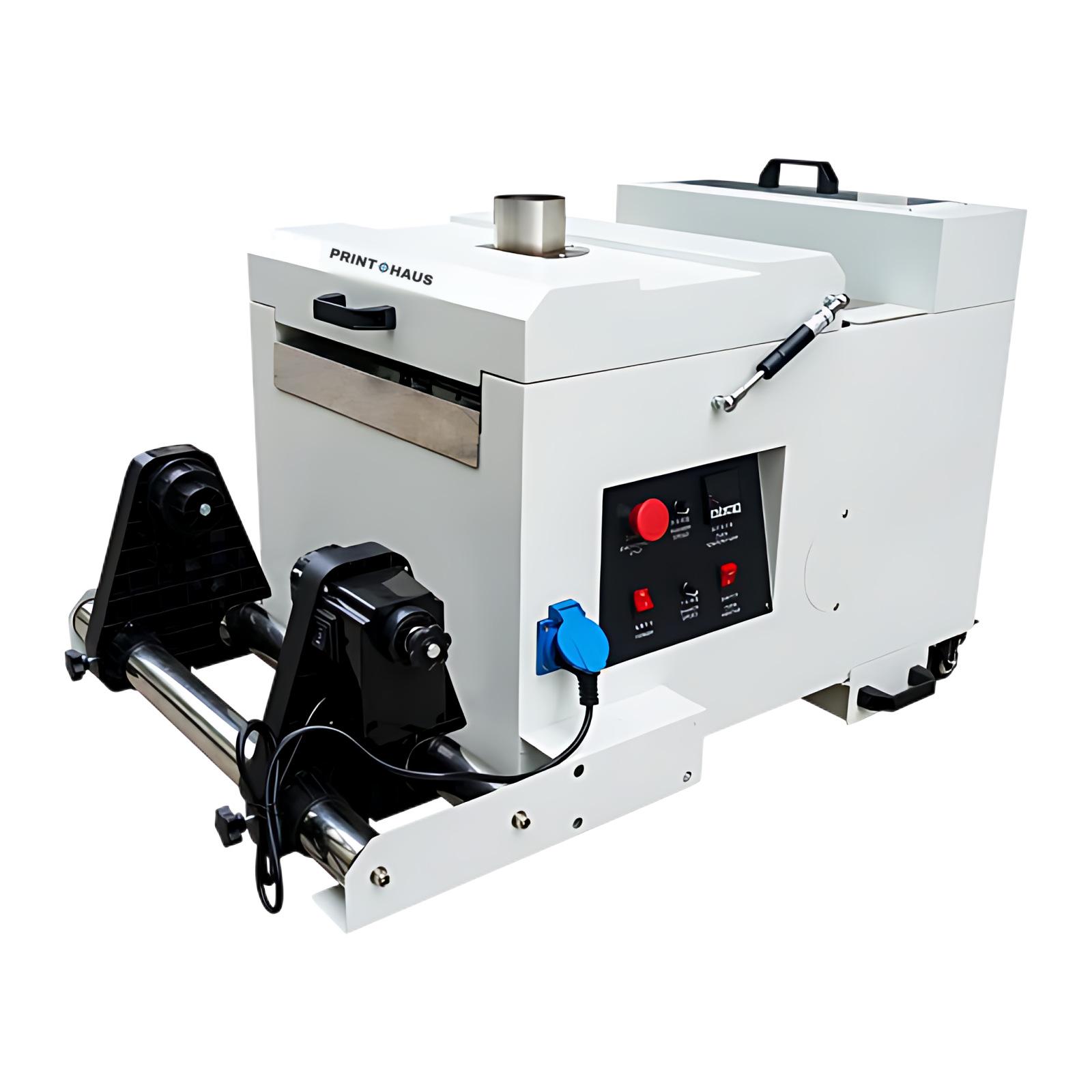

- Yes. The price covers the printer, the DF-300 Pro powder shaker and dryer, and an air filter for the curing fumes, delivered to your door.
- Does it run on a US 110V outlet?
- No. It runs on 220V, the same kind of circuit a clothes dryer uses. Most shops already have one; if not, an electrician can add one.
- Is there a cheaper version?
- Yes, the PH-DTF302F uses two Epson F1080 heads, prints up to 13 in wide and runs slower (48 ft²/h at 4 pass). Ask us for its price.
- How many shirts an hour is that?
- At 4 pass it prints about 75 ft² of film an hour. A left-chest logo and a full front fit many to a square foot, so in practice the press, not the printer, sets your pace.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-DTF302?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
