Specification
- Print width
- 23.6 in (600 mm)
- Printheads
- 3 × Epson i3200-U1
- Ink
- CMYK + White + Varnish, UV
- Production speed
- up to 10 m²/h, 108 ft²/h (4-pass)
- Print speed
- 4 pass 107.6 ft²/h (10 m²/h) · 6 pass 75.3 ft²/h (7 m²/h) · 8 pass 43.1 ft²/h (4 m²/h)
- Resolution
- up to 3200 dpi
- Laminator
- built in
- UV curing
- LED UV lamps with water chiller
- Media
- UV DTF film and soft media up to 0.06 in (1.5 mm) thick
- Ink system
- positive-pressure ink supply, high-precision ink station
- Motion
- dual Leadshine servo motors
- Printhead protection
- anti-collision device
- RIP software
- Photoprint
- Power
- 2,000 W
- Shipping dimensions
- 87.8 × 44.1 × 31.5 in (223 × 112 × 80 cm)
- Weight
- 606 lb (275 kg)
- Warranty
- 12 months machine

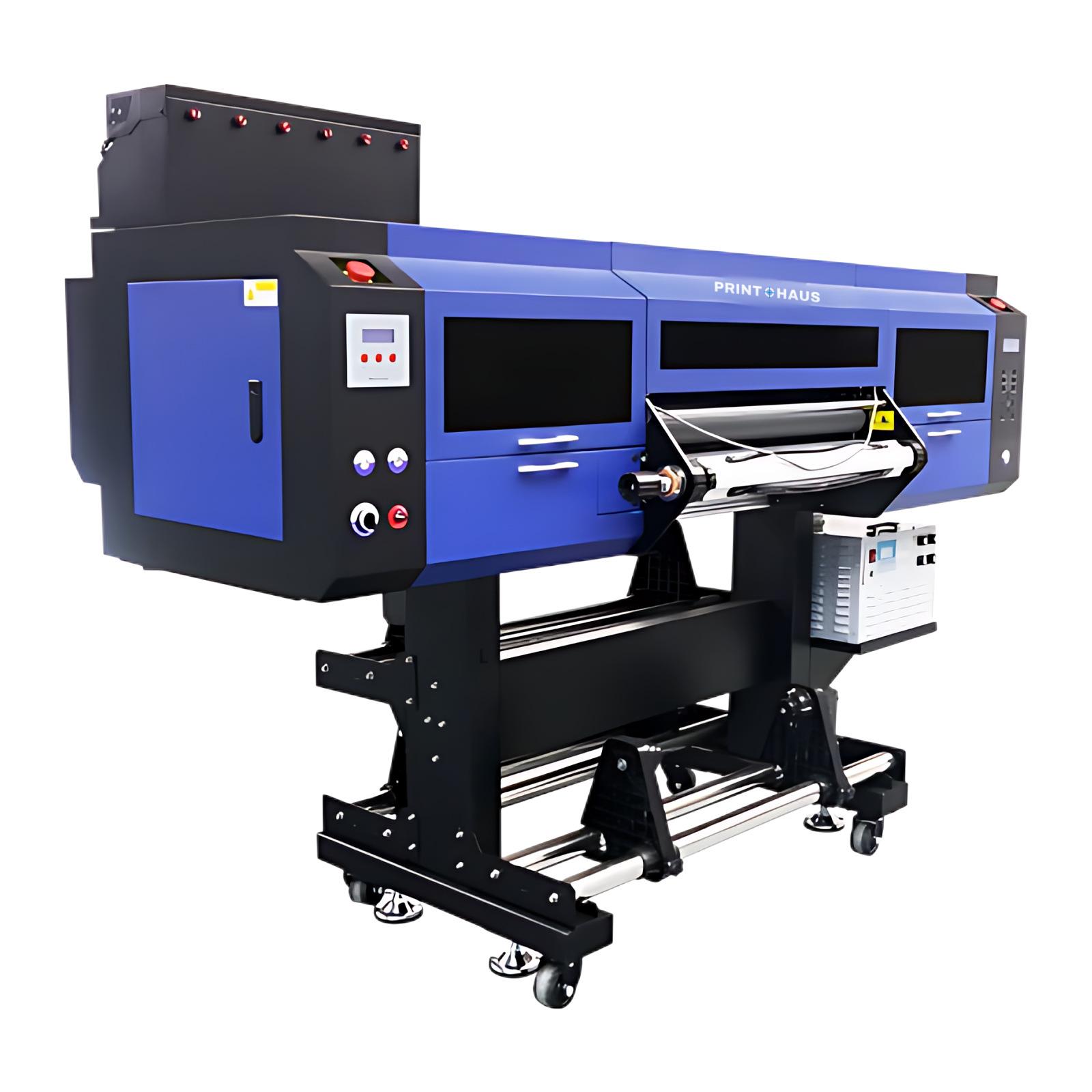

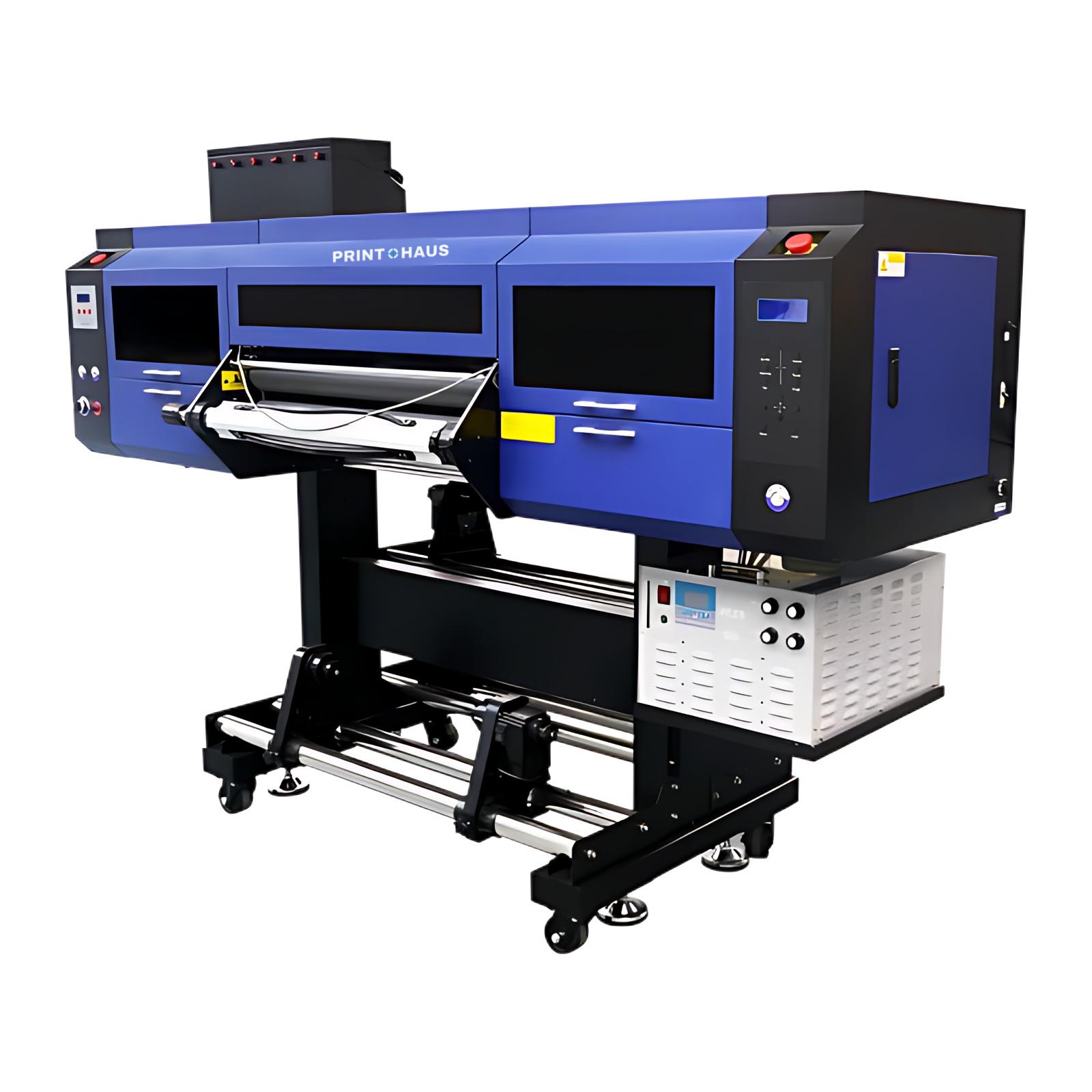

UV DTF makes a sticker with no backing left behind: the PH-UVDTF603 prints white, colour and varnish onto A film, cures it with LED UV light and laminates it to B film in the same pass. Peel, press on by hand, and the print stays on glass, metal, plastic and coated paper, curved surfaces included. At 24 inches wide, more wraps and labels fit on every run, which lowers the cost of each one.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Tumbler, glass can and cup wraps
- Gift boxes, packaging and product labels
- Phone cases, notebooks and promotional items
- Glass, metal, plastic, wood and coated paper
Also considered
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
UV Flatbed Printer, 24 × 35 in, 3 × i3200, Camera
- 23.6 × 35.4 in (600 × 900 mm)
- 3 × Epson i3200-U1
- 7.1 in (180 mm)
75-inch Sublimation Printer, 4 × i3200
- 74.8 in (1900 mm)
- 4 × Epson i3200-A1
- dye-sublimation, CMYK
PH-UVDTF603 — what buyers ask
- How much does the PH-UVDTF603 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- Does it need a separate laminator?
- No. Print and lamination happen in one machine, so what comes off the roll is ready to cut and sell.
- Does it print on T-shirts?
- No. UV DTF is for hard goods. For garments, a DTF printer is the right machine.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-UVDTF603?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
