Specification
- Print width
- 74.8 in (1900 mm)
- Printheads
- 4 × Epson i3200-A1
- Ink
- dye-sublimation, CMYK
- Production speed
- up to 90 m²/h, 969 ft²/h (4-pass)
- Print speed
- 2 pass 1,938 ft²/h (180 m²/h) · 4 pass 968.8 ft²/h (90 m²/h)
- Ink bottles
- 4 × 3.5 L + 4 × 220 ml
- Ink supply
- siphon system, secondary cartridge with supply timeout alarm
- Media
- sublimation paper
- Media feed
- automatic constant tension, three-speed pressure roller, inflatable shaft
- Drying
- double drying
- Motion
- dual Leadshine servo motors
- Guide rails
- THK high-speed silent linear guides
- RIP software
- RIIN, Maintop or Photoprint
- Power
- machine 0.9 kW · heating 6.76 kW · 220 V 50/60 Hz
- Shipping dimensions
- 127.2 × 44.5 × 40.9 in (323 × 113 × 104 cm)
- Weight
- 1,433 lb (650 kg)
- Warranty
- 12 months machine

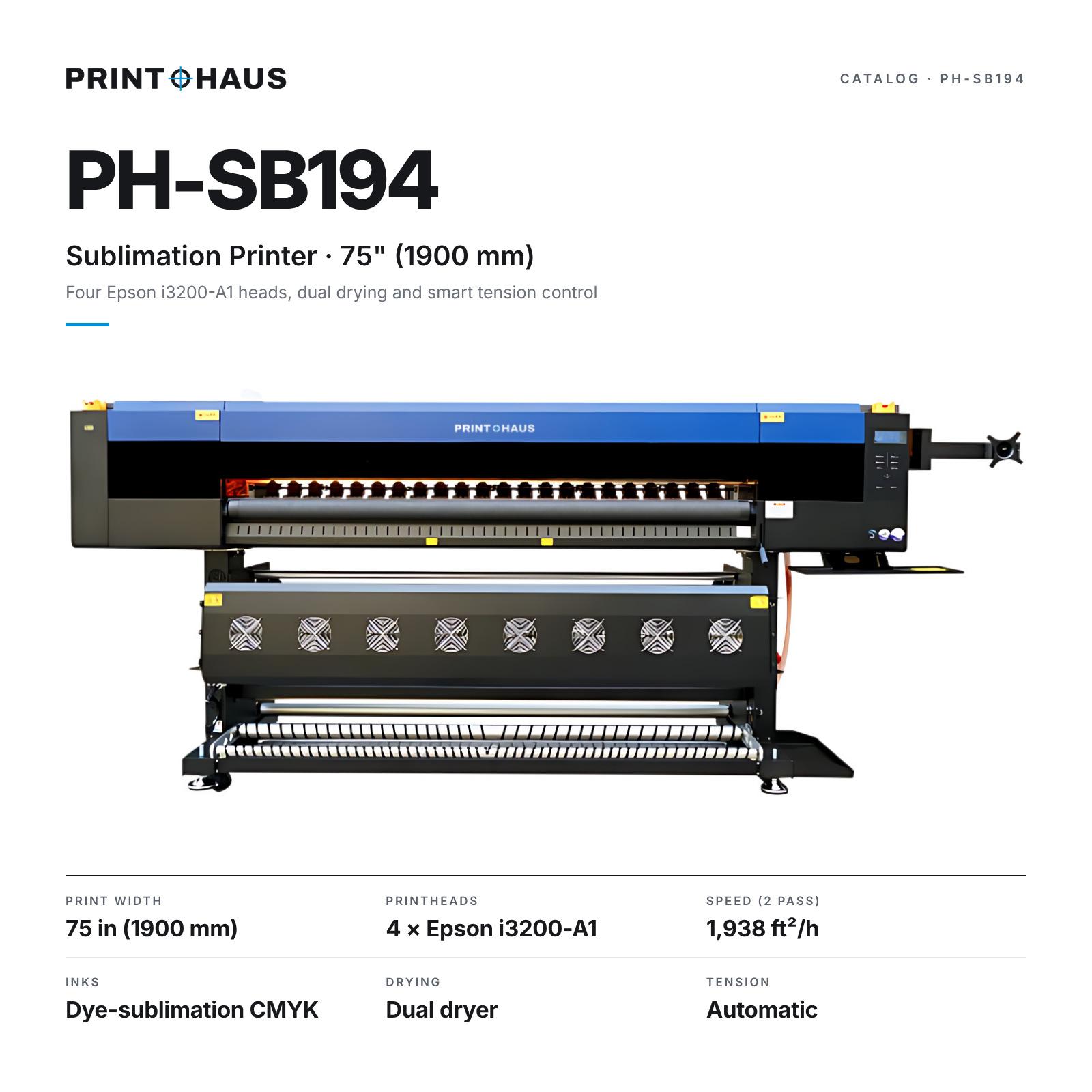

The PH-SB194 prints 75-inch sublimation paper with four Epson i3200 heads at up to 969 ft² an hour at 4 pass. Double drying sets the ink before the paper rolls up, and the constant-tension feed keeps it flat for registration-critical work like team kits with numbers. It is the step up for shops whose desktop sublimation printers are full every day.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Sports jerseys and team kits
- Swimwear and activewear
- Bedding, curtains and scarves
- Polyester fabric printed by the roll
Also considered
72-inch Industrial Sublimation Printer, 8 × i3200
- 71.7 in (1820 mm)
- 8 × Epson i3200-A1
- dye-sublimation, CMYK
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
24-inch UV DTF Printer with Laminator, 3 × i3200
- 23.6 in (600 mm)
- 3 × Epson i3200-U1
- CMYK + White + Varnish, UV
PH-SB194 — what buyers ask
- How much does the PH-SB194 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- What else do I need?
- A rotary heat press or calender to transfer the paper onto fabric, and polyester or polyester-coated material. For cotton, a DTF printer is the right machine.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-SB194?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
