Specification
- Print width
- 71.7 in (1820 mm)
- Printhead
- 1 × Epson i3200 (A1, E1 or U1)
- Ink
- eco-solvent, sublimation or UV, CMYK
- Production speed
- up to 14 m²/h, 150 ft²/h (4-pass)
- Print speed
- 4 pass 150.7 ft²/h (14 m²/h) · 6 pass 96.9 ft²/h (9 m²/h)
- Heating
- front, middle and rear heaters
- Ink supply
- continuous, large tanks with secondary cartridges
- Maintenance
- lift capping station with automatic cleaning, spitting and moisturising
- Media handling
- precision pinch rollers, suction platform
- Motion
- X servo motor · Y stepper motor
- Printhead protection
- anti-collision
- RIP software
- Maintop (Photoprint optional)
- Power
- printer 1,900 W · heater 2,000 W · AC 220 V 50/60 Hz
- Operating environment
- 59–86 °F (15–30 °C), 40–60% RH
- Shipping dimensions
- 114.2 × 29.9 × 25.6 in (290 × 76 × 65 cm)
- Weight
- 529 lb (240 kg)
- Warranty
- 12 months machine

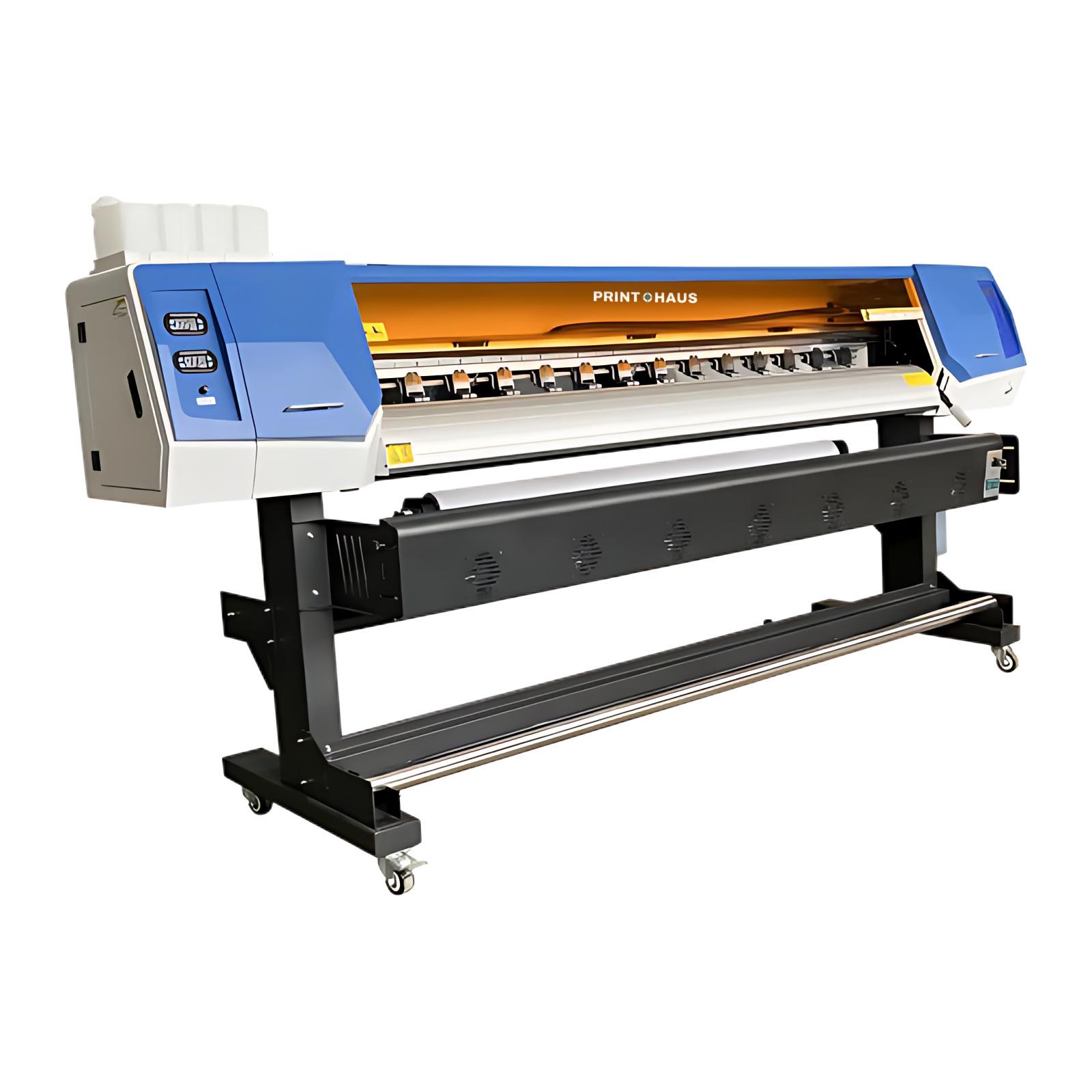

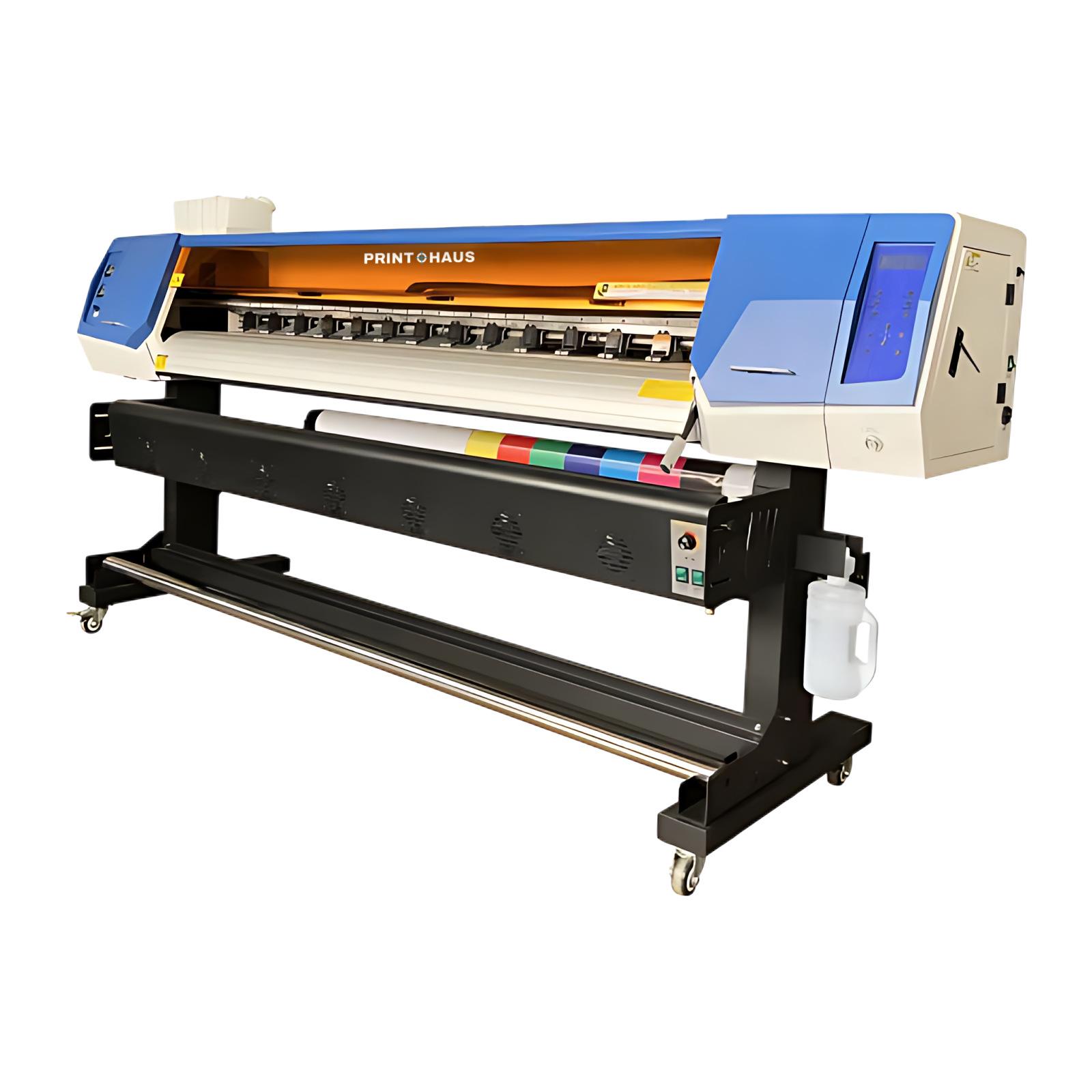

The PH-ES181 is a 72-inch roll printer for sign shops and wrap installers: vinyl, banners, poster paper, canvas and wallpaper at up to 150 ft² an hour. Three heaters dry the ink as it prints, so a roll can come off and go straight to the laminator, and the lift capping station cleans and moistens the head on its own when the machine is idle. The same machine can be set up for eco-solvent, sublimation or UV ink, so the order decides the work it does.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Vehicle wraps and car graphics
- Posters, lightboxes and window graphics
- Wallpaper murals and canvas art prints
- Vinyl, photo paper, car stickers, flex banner, leather and canvas
Configuration
Also considered
78-inch Eco-Solvent Printer, 2 Rolls, 2 × i3200
- 78.3 in (1988 mm)
- 2 × Epson i3200 (E1, A1 or U1)
- eco-solvent, sublimation or UV, CMYK
67-inch UV Roll-to-Roll Printer, i3200
- 66.9 in (1700 mm)
- 1 × Epson i3200-U1
- CMYK, UV
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
PH-ES181 — what buyers ask
- How much does the PH-ES181 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- Can I change the ink later?
- The ink is chosen when you order, because the printhead and ink lines are set up for one ink. Changing later means flushing the system, which our technicians can walk you through.
- Is there a lower-cost version?
- Yes, the PH-ES181F uses an Epson F1080 head and prints up to 75 ft²/h at 4 pass. Ask us for its price.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-ES181?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
