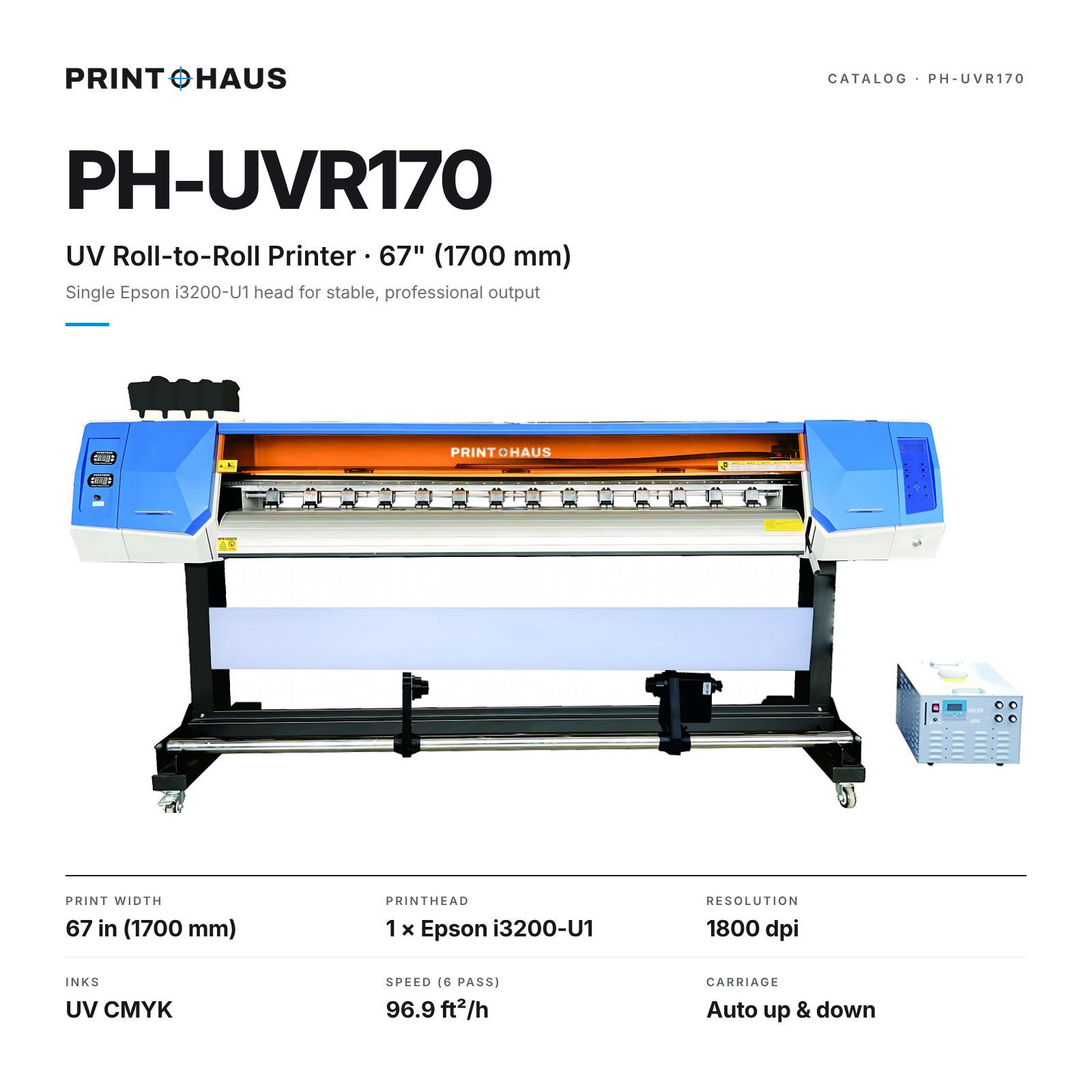

Specification
- Print width
- 66.9 in (1700 mm)
- Printhead
- 1 × Epson i3200-U1
- Ink
- CMYK, UV
- Production speed
- up to 9 m²/h, 97 ft²/h (6-pass)
- Print speed
- 6 pass 96.9 ft²/h (9 m²/h) · 8 pass 75.3 ft²/h (7 m²/h)
- Resolution
- 1800 dpi
- Ink supply
- 1.5 L tanks with adjustable secondary supply
- Carriage
- automatic up and down
- Motion
- X servo motor · Y stepper motor, silent linear guide rails
- Media handling
- metal suction platform, precision pinch rollers
- Capping station
- all-aluminium, manual rotation
- RIP software
- Maintop (Photoprint optional)
- Power
- 1,750 W · 220 V 50/60 Hz
- Operating environment
- 59–86 °F (15–30 °C), 40–60% RH
- Shipping dimensions
- 114.2 × 29.9 × 25.6 in (290 × 76 × 65 cm)
- Weight
- 529 lb (240 kg)
- Warranty
- 12 months machine
UV ink cures the moment it lands, so prints from the PH-UVR170 can be laminated, cut and installed straight off the roll, with none of the drying time solvent prints need. The 67-inch width covers window graphics, bus-shelter posters, trade-show backdrops and lightbox film, and UV prints carry no solvent smell into a shop or an office.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Window posters and storefront graphics
- Bus-shelter and lightbox posters, backlit film
- Trade-show backdrops and banners
- Vinyl, photo paper, car stickers, flex banner, leather and canvas
Also considered
72-inch Eco-Solvent Printer, i3200
- 71.7 in (1820 mm)
- 1 × Epson i3200 (A1, E1 or U1)
- eco-solvent, sublimation or UV, CMYK
78-inch Eco-Solvent Printer, 2 Rolls, 2 × i3200
- 78.3 in (1988 mm)
- 2 × Epson i3200 (E1, A1 or U1)
- eco-solvent, sublimation or UV, CMYK
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
PH-UVR170 — what buyers ask
- How much does the PH-UVR170 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- UV or eco-solvent for signs?
- UV prints are dry the moment they leave the printer and have no solvent smell. Eco-solvent ink costs less per square foot and stretches better over vehicle curves. Most sign shops choose by the work they print most.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-UVR170?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
