Specification
- Print width
- 78.3 in (1988 mm)
- Printheads
- 2 × Epson i3200 (E1, A1 or U1)
- Ink
- eco-solvent, sublimation or UV, CMYK
- Production speed
- up to 31 m²/h, 334 ft²/h (4-pass)
- Rolls
- prints two rolls of media at the same time
- Drying
- intelligent start-stop drying
- Ink supply
- large-capacity ink supply system
- Capping station
- all-aluminium, protects heads during power loss
- Printhead protection
- anti-collision system
- Motion
- Leadshine servo motor
- RIP software
- RIIN
- Power
- printer 1,905 W · heater 4,920 W · AC 220 V 50/60 Hz
- Operating environment
- 64–86 °F (18–30 °C), 40–60% RH
- Shipping dimensions
- 122.4 × 30.3 × 33.1 in (311 × 77 × 84 cm)
- Weight
- 644 lb (292 kg)
- Warranty
- 12 months machine

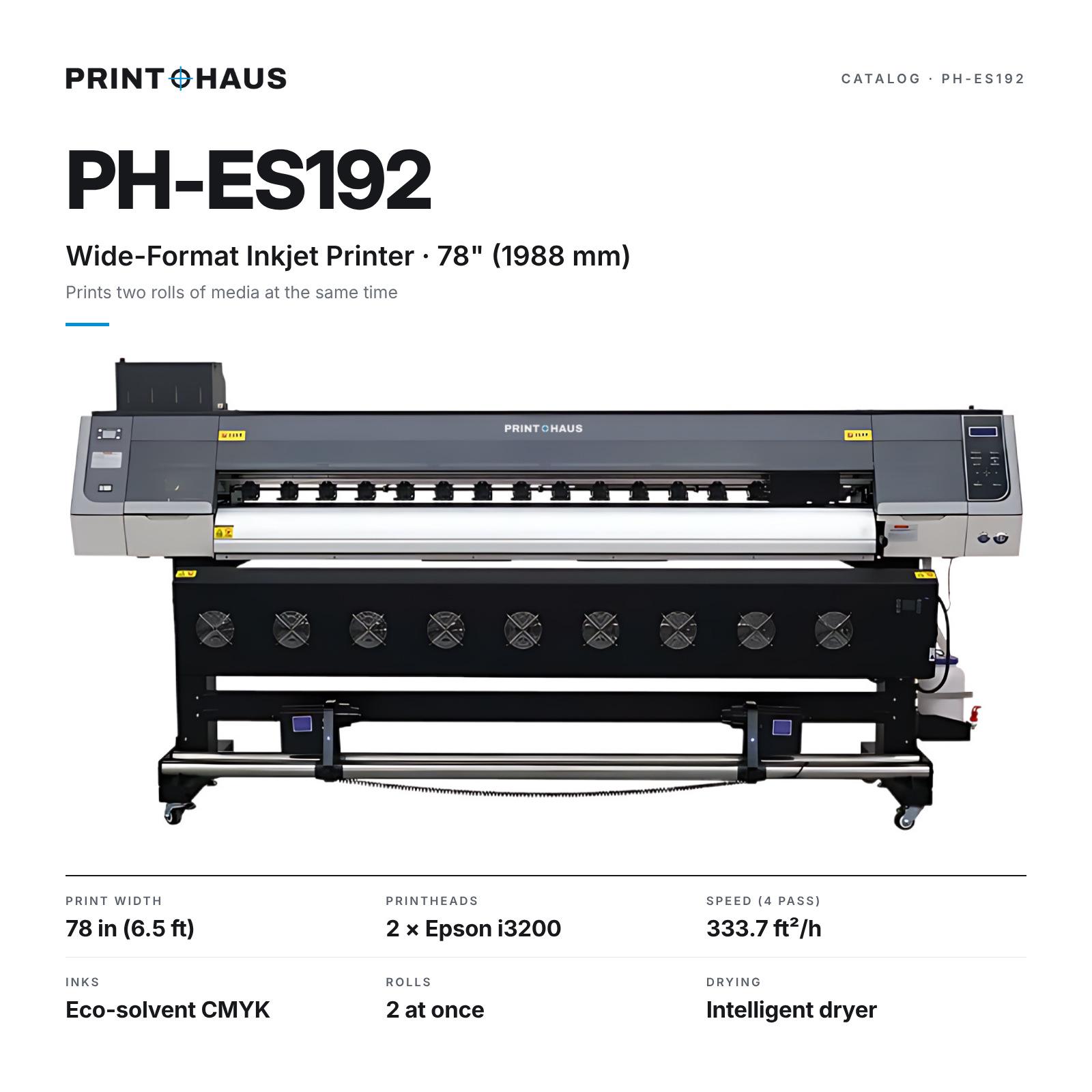

The PH-ES192 is built for volume: two Epson i3200 heads across 78 inches print up to 334 ft² an hour, and two rolls can run side by side, so two narrower jobs print at once instead of one after the other. The heater only runs while it prints, and the capping station seals the heads if the power drops, which protects them in shops where it does.
Online setup and operator training, with your questions answered by our technical team. RIP settings and ICC profiles come set up for the ink we sell, so the first print matches the proof. Remote technical support by video for as long as you own the machine.
Crated and insured to your door, 2–4 weeks from dispatch. In the US the price is final, with import duty paid and nothing to pay on arrival; elsewhere we quote delivery before you order. 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
Prints on
- Roll-up banners and pull-up displays
- Building and fence banners
- Car and van wraps, fleet graphics
- Vinyl, photo paper, car stickers, flex banner and sublimation paper
Configuration
Also considered
72-inch Eco-Solvent Printer, i3200
- 71.7 in (1820 mm)
- 1 × Epson i3200 (A1, E1 or U1)
- eco-solvent, sublimation or UV, CMYK
67-inch UV Roll-to-Roll Printer, i3200
- 66.9 in (1700 mm)
- 1 × Epson i3200-U1
- CMYK, UV
24-inch 9-Colour DTF Printer with Shaker, 6 × i3200
- 23.6 in (600 mm)
- 6 × Epson i3200-A1
- 9 colours, CMYK + orange, red, green, blue + White, pigment
PH-ES192 — what buyers ask
- How much does the PH-ES192 cost?
- Ask and you get the delivered US price in writing the same day, with any options you need priced line by line. Outside the US we quote delivery and import costs before you order.
- How does two-roll printing work?
- Two rolls up to half the width each load side by side and print at the same time, so two jobs on different media or for different customers finish together.
- Are there any extra costs on delivery?
- Not in the US. The price is delivered duties paid: freight, import clearance and duty are already in it, so no broker contacts you for money.
- How long does delivery take?
- 3–5 working days to prepare your order once payment clears, then 2–4 weeks from dispatch.
- What warranty comes with the PH-ES192?
- 12 months on the machine, with replacement parts supplied free for manufacturing and component failure. Printheads, wipers, capping stations and dampers are wearing parts and are not covered.
- Is setup and training included?
- Yes. Online setup and operator training, with your questions answered by our technical team. After that: remote technical support by video for as long as you own the machine.
- How do I pay?
- By wire transfer against a proforma invoice. You place the order on the site and the invoice arrives by email with payment instructions. Pay in full, or 50% before we prepare your order and 50% once it is ready to ship. The price is the same either way.
